MenaTelecom WiMAX: Free Internet hack (Cloning Motorola CPEi 35775)

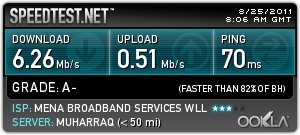

Testing speed of cloned Motorola CPEi 35775.................

Cloning Motorola CPEi35775:
BootLoader 0x90000000,0x90020000
Bootloader Config 0x90020000,0x90040000
Device Certificates 0x90CA0000,0x90CC0000

Copy these partitions from a motorola cpe to another cpe..

To change Wimax MAC just edit the HWA_0 to your desired MAC in bootloader / bootloader config

Note: Wimax mac from Bootloader / Bootloader Config must match Device certificate in-order to get connected to the network.

To Do: Bypass Certificate verification....

PSPboot Log (with console_state unlocked):

B2 Bootloader 01.01.08

Basic POST completed... Success.
Last reset cause: Hardware reset (Power-on reset)

PSPBoot1.5 rev: 1.5.0.6
(c) Copyright 2002-2006 Texas Instruments, Inc. All Rights Reserved.

BLADE2 3.5G
Press ESC for monitor... 3
(psbl) help
reboot version info fa
printenv setenv setpermenv unsetenv
defragenv fmt boot dm
oclk help tftp testram
testflash flash testled
(psbl) printenv

TOOLS_USER 0
BOOTLOADER 0x90000000,0x90020000
IMAGE_A 0x90040000,0x90C40000
CONFIG_A 0x90C40000,0x90C60000
CONFIG_B 0x90C60000,0x90C80000
IMAGE_B 0x90CE0000,0x918E0000
FNE_CERTS 0x90C80000,0x90CA0000
DEV_CERTS 0x90CA0000,0x90CC0000
FACTORY_DEF 0x90CC0000,0x90CE0000
JFFS2 0x918E0000,0x92000000
RESET_CAUSE 0
PartNumber SGDNXXXXBA
ProductID CPEi35775
HWRevision REV.D
SerialNumber TS19XXXXXX
HWA_1 00:23:XX:XX:XX:3D
GATEWAY_MAC_ADDRESS 00:23:XX:XX:XX:3E
WIFI_MAC_ADDRESS 00:23:XX:XX:XX:3F
FingerPrint ~removed~
HWA_0 00:24:XX:XX:XX:75
FactoryProvision Complete
CONSOLE_STATE unlocked
BOOTCFG m:f:"IMAGE_B"
BUILD_OPS 0xd41
MEMSZ 0x04000000
FLASHSZ 0x02000000
MODETTY0 115200,n,8,1,hw
MODETTY1 115200,n,8,1,hw
CPUFREQ 212992000
MIPSFREQ 212992000
SYSFREQ 150000000
bootloaderVersion 01.01.08
PROMPT (psbl)

P.S. MAC address & serial hidden.


END! Read more!

Exclusive: Menatelecom Motorola WiMAX CPEi 35775 configuration Upload/Download hack

Motorola WiMAX CPEi35775 (from Menatelecom) Config Upload/Download hack

might work with other models like CPEi 150/725/750....

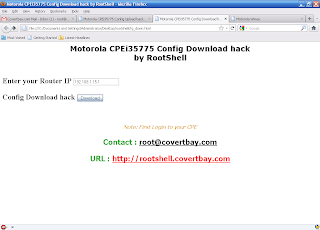

How to Upload and Download Motorola Wimax CPEi 35775 config file?

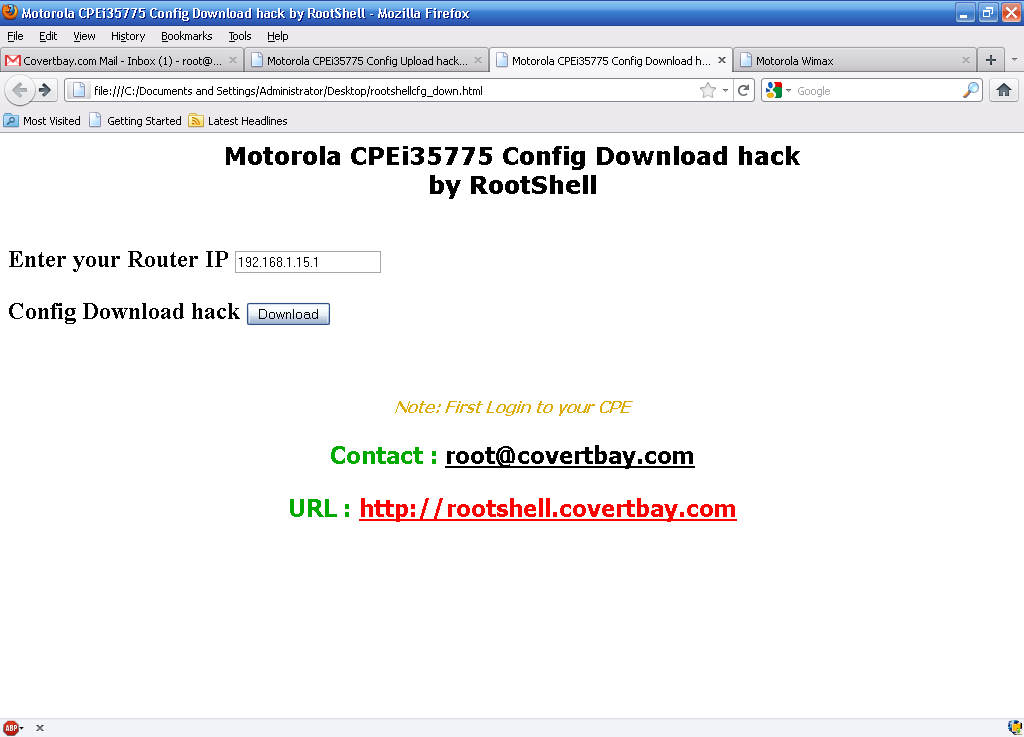

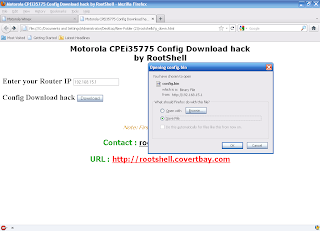

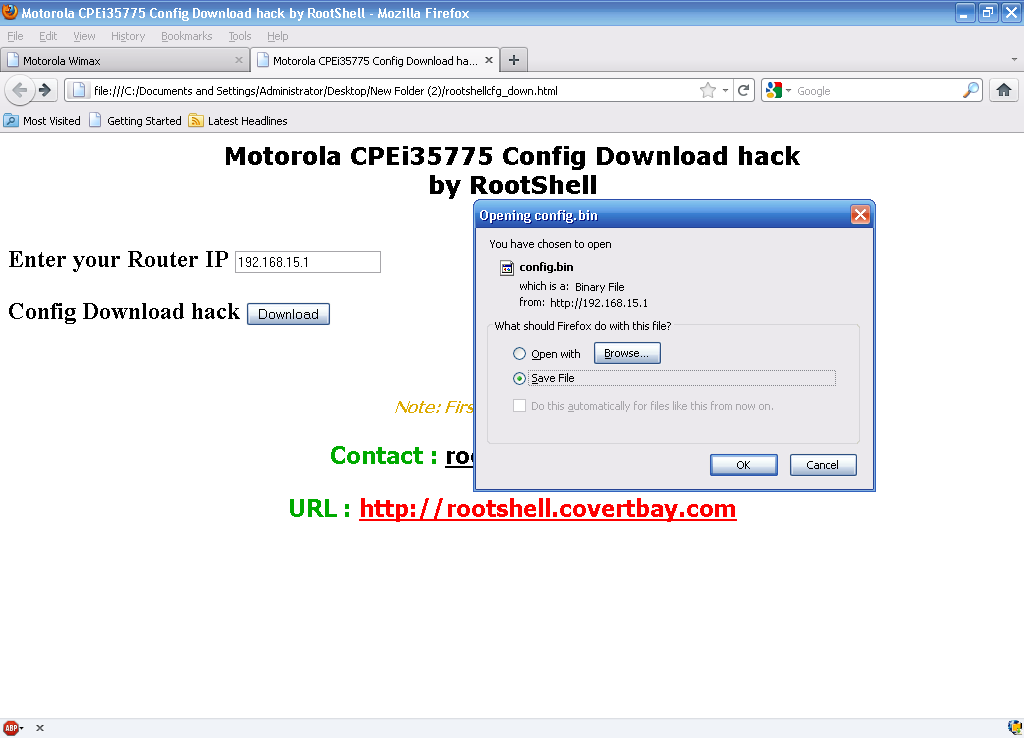

Config file download

After Clicking download save the config file

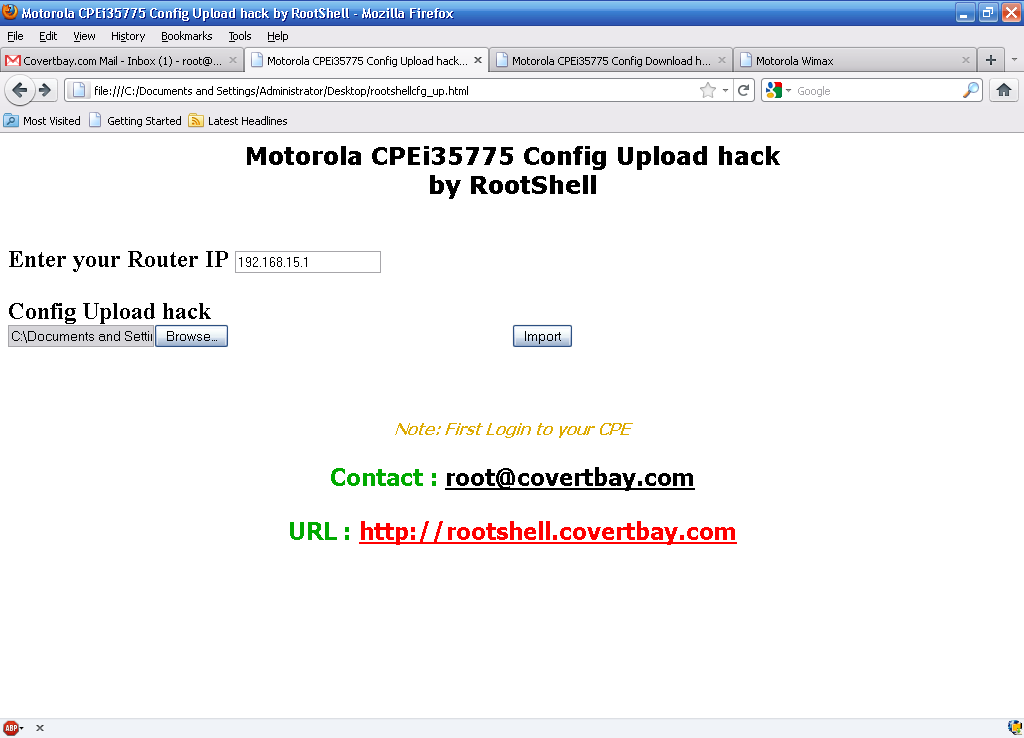

Config file Upload

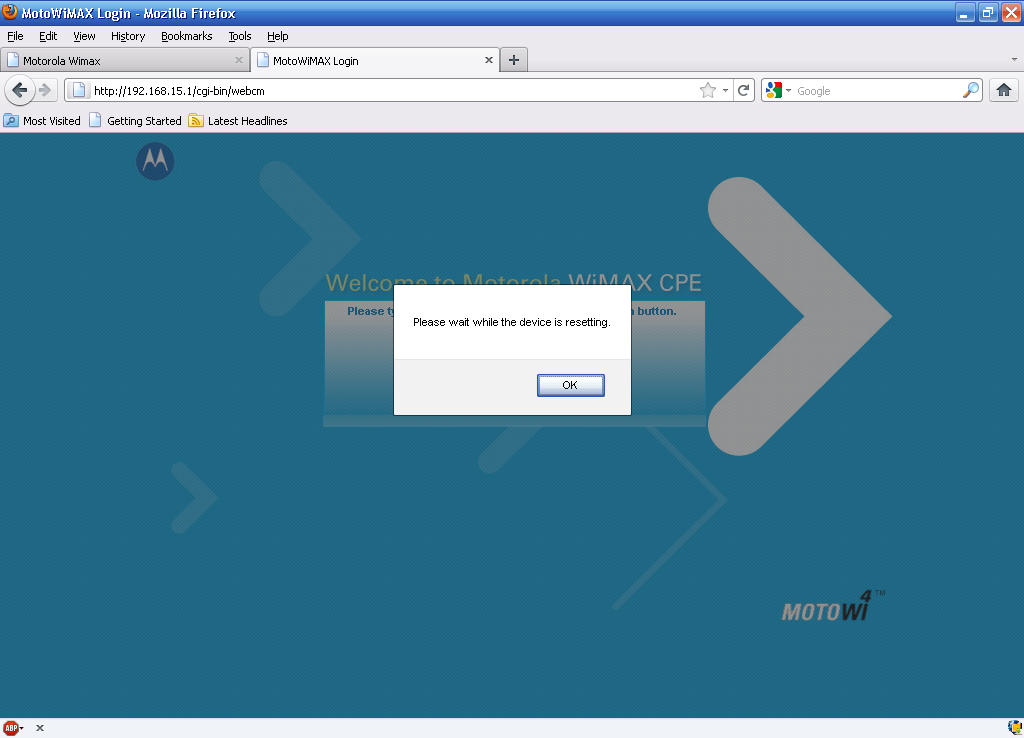

After Successful upload (cpe will reboot)

*Note: Click Read more to get the Config Upload/Download hack pages

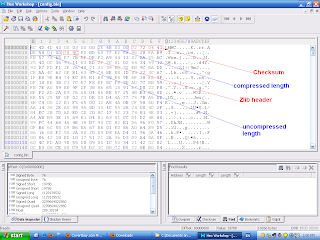

Config file detail:

LMMC 4C4D4D43 + 00030000 (fixed)

compressed size 2E4B0000 ---> 4B2E = 19246 bytes
checksum 72720441
uncompressed size 0E540100 ---> 1540E = 87054 bytes
Zlib = 789C........

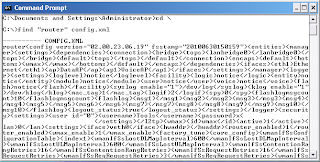

Config file details

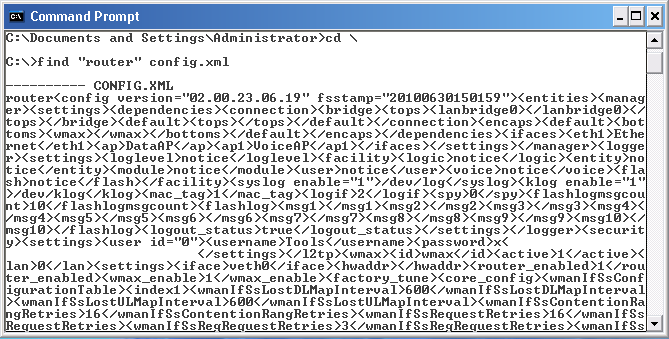

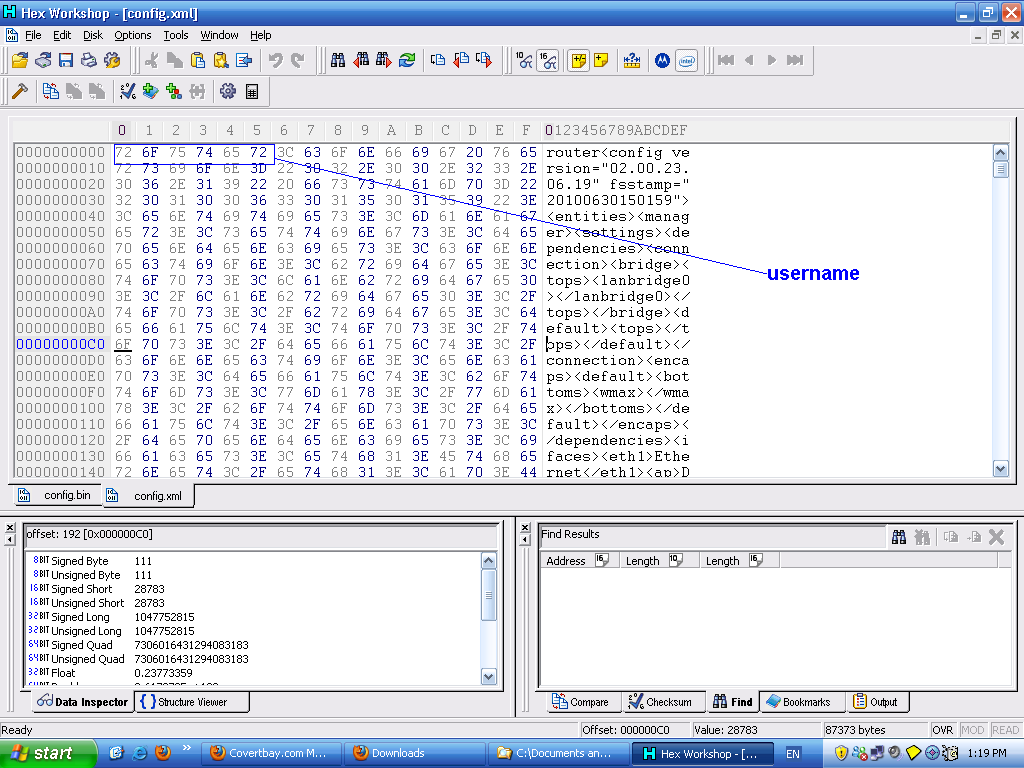

Uncompressed config file (deflated)

config.xml

Edit the config xml according to your needs and then compress (inflate it). After that upload it

Download: Config Upload/Download page..

OR check My Downloads

END!

Read more!

Rooting Menatelecom Wimax CPE (Motorola CPEi35775) [incomplete]

Menatelecom Motorola Wimax CPE w/ WiFi (Model: CPEi35775)

Inside Motorola CPEi35775

===== [ Start ] Serial Output @115200 ========

B2 Bootloader 01.01.08

Basic POST completed... Success.
Last reset cause: Hardware reset (Power-on reset)

PSPBoot1.5 rev: 1.5.0.6
(c) Copyright 2002-2006 Texas Instruments, Inc. All Rights Reserved.

BLADE2 3.5G

===== [ END ] Serial Output @115200 ========


===== [ Start ] Serial Output @9600 =========


ledcfg: reading Standard Configuration File /etc/led.conf
Wrote to the LED driver 55 records for various LED states.
Preparing /var ...
load_libpass_from_flash:ln=129 Size of store/dev_certs/libpass.so = 11988
load_libpass_from_flash:line=150 bytes_written to = /var/tmp/libpass.so 11988
Mounting JFFS2 ...
load_filter_file:992 Error opening /var/tmp/corelogic_in_out_msg_filter.in file
Lightbox - LED control application for B2-BLADE2.
LED Handlers are:
LED1 : 94593960
LED2 : 94593a60
LED3 : 94593b60
LED4 : 94593c60
log destination= (null)
logif= 2
Entered TPA_Decrypt
AED Malloc successful
Cipher_text_size is: 976
Calling decrypt
Decrypt successful
Can't open output file /var/tmp/
Doing BRCTL ...
addbr br0
wmx_enqueue_band_bw_listUsing /lib/modules/2.4.17_mvl21-malta-mips_fp_le/extra/ath_hal.o
Using /lib/modules/2.4.17_mvl21-malta-mips_fp_le/extra/ath_dfs.o
Using /lib/modules/2.4.17_mvl21-malta-mips_fp_le/extra/wlan.o
Using /lib/modules/2.4.17_mvl21-malta-mips_fp_le/extra/ath_rate_atheros.o
Using /lib/modules/2.4.17_mvl21-malta-mips_fp_le/extra/ath_pci.o
Using /lib/modules/2.4.17_mvl21-malta-mips_fp_le/extra/wlan_xauth.o
Using /lib/modules/2.4.17_mvl21-malta-mips_fp_le/extra/wlan_ccmp.o
Using /lib/modules/2.4.17_mvl21-malta-mips_fp_le/extra/wlan_tkip.o
Using /lib/modules/2.4.17_mvl21-malta-mips_fp_le/extra/wlan_wep.o
Using /lib/modules/2.4.17_mvl21-malta-mips_fp_le/extra/wlan_acl.o
Using /lib/modules/2.4.17_mvl21-malta-mips_fp_le/extra/wlan_scan_ap.o
Using /lib/modules/2.4.17_mvl21-malta-mips_fp_le/extra/wlan_scan_sta.o
wlan0
wmax_cpmac_state: Could not open file /var/tmp/wmxlinkstatus Doing BRCTL ...
addif br0 eth1
veth0
Doing BRCTL ...
addif br0 wlan0
load_filter_file:992 Error opening /var/tmp/corelogic_in_out_msg_filter.in file
wmx_enqueue_band_bw_listEntity provision is trying to send a message to AL, ERROR
process_message(): port 0
process_message(): port 0
process_message(): port 1
info, udhcp server (v0.9.7) started
wmx_enqueue_band_bw_listDoing BRCTL ...
stp br0 off
wmx_enqueue_band_bw_listwmx_enqueue_band_bw_listwmx_enqueue_band_bw_listwmx_enqueue_band_bw_listwmx_enqueue_band_bw_listwmx_enqueue_band_bw_listwmx_enqueue_band_bw_listwmx_enqueue_band_bw_listwmx_enqueue_band_bw_listwmx_enqueue_band_bw_listwmx_enqueue_band_bw_listwmx_enqueue_band_bw_listwmx_enqueue_band_bw_listwmx_enqueue_band_bw_listwmx_enqueue_band_bw_listwmx_enqueue_band_bw_listwmx_enqueue_band_bw_listwmx_enqueue_band_bw_listwmx_enqueue_band_bw_listwmx_enqueue_band_bw_listwmx_enqueue_band_bw_listwmx_enqu

===== [ END ] Serial Output @9600 ========

Summary:
!!!Serial!!! Console State Locked... Need (WIGGLER) JTAG!!!


More info soon! Read more!

Motorola PTP 400 wireless link

Panel Antenna used for Motorola PTP 400

Main Board

Inside



Web interface

END!

Read more!

Menatelecom WiMAX Internet, VoIP & Logo Hack: Motorola CPEi 35775 (from Menatelecom)

Few Menatelecom CPE hacks & tricks

Motorola WiMAX CPEi 35775 (from Menatelecom) firmware doesn't allow to edit Internet Settings (such as User Name /Password), VoIP Settings and no option to change the Menatelecom's Logo as engineering ipk package is not installed by default.. Few pages are hidden (like pages that allow to change Internet/VoIP user/pass) , only accessible if you know the full URL and page name.

So we will change this settings without engineering IPK package


Changing Service Provider Logo (in this case menatelecom's logo)

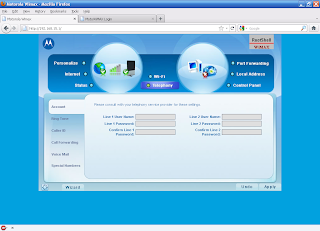

First Login to your CPE
(as you can see there's no extra add-on package installed)


Open the Upload Logo Hack page

Enter Router's IP (i.e. 192.168.15.1)

Right-click and save this logo on your pc
(note: you can edit the logo according to your requirements)

Browse to the location of the logo and click on Upload

(Click Read more to download Logo upload html page)

Logo Changed

========================================

Make free calls with Menatelecom CPEi35755

How to Change Menatelecom CPE VoIP Username & Password

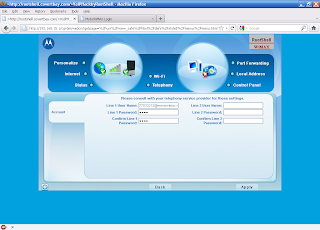

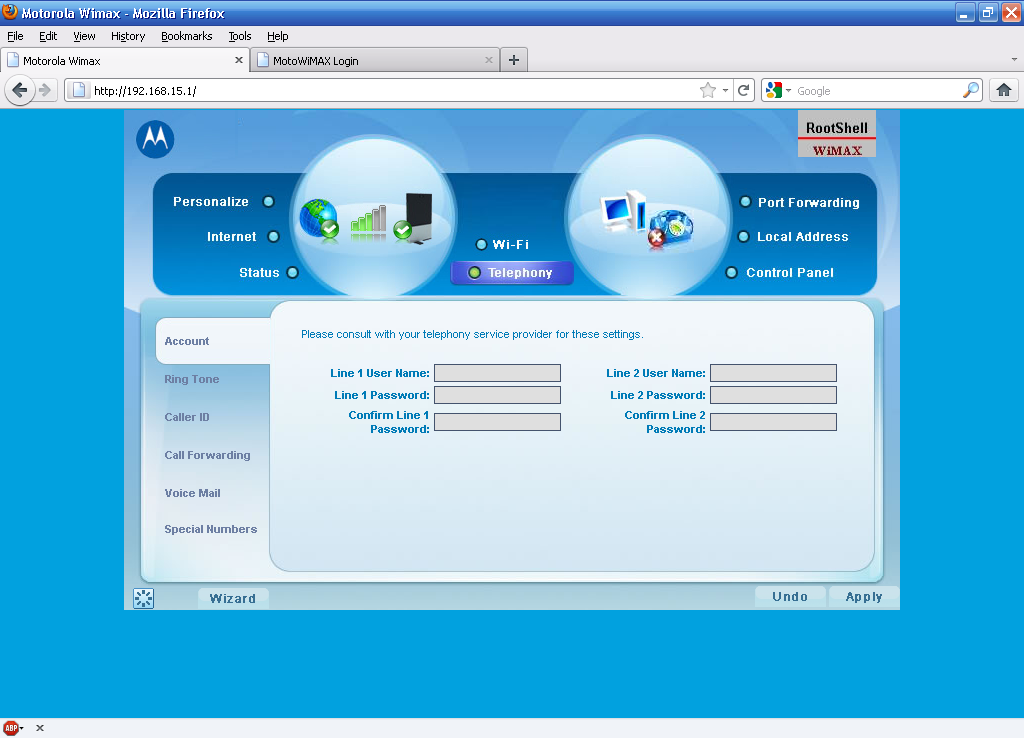

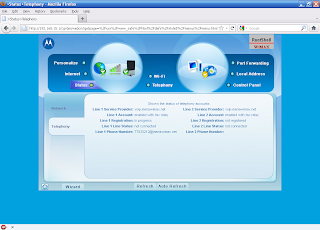

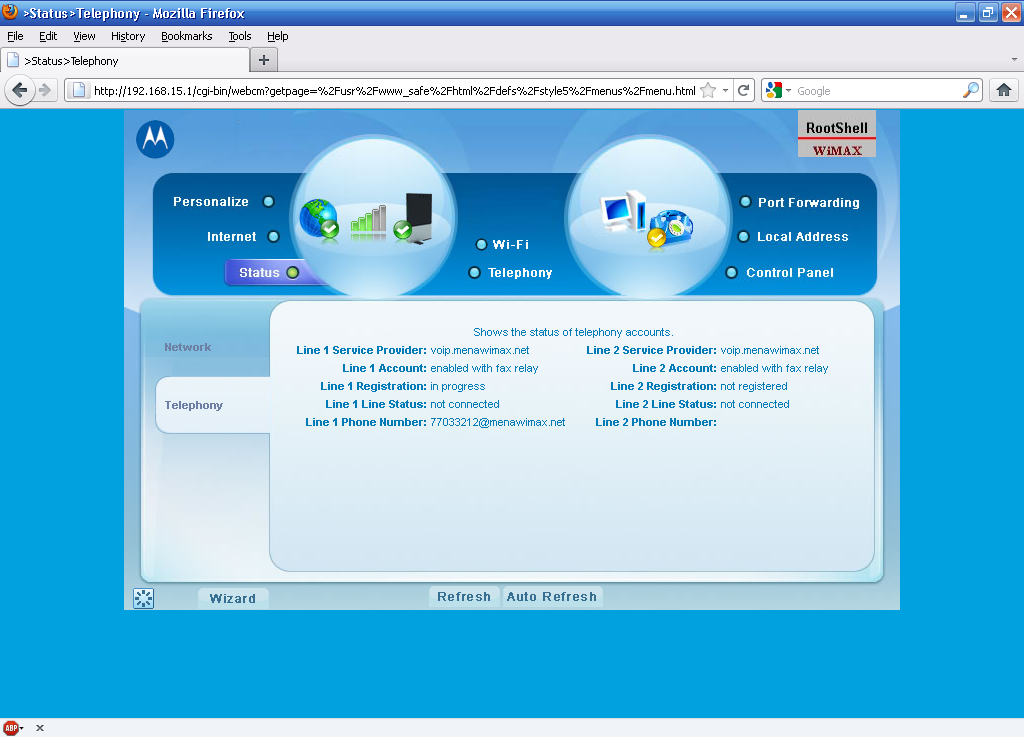

Click on Telephony (as you can see these fields are un-editable)

Copy & Paste the following code in the Navigation bar and press Enter

(append it to the URL http://192.168.15.1/~add here~)

cgi-bin/webcm?getpage=%2Fusr%2Fwww_safe%2Fhtml%2Fdefs%2Fstyle5%2Fmenus%2Fmenu.html&var:style=style5&var:main=menu&var:menu=wizard&var:menutitle=http://rootshell.covertbay.com/&var:pagename=wizard_step4&var:pagetitle=VoIPHackbyRootShell

URL will look like this

http://192.168.15.1/cgi-bin/webcm?getpage=%2Fusr%2Fwww_safe%2Fhtml%2Fdefs%2Fstyle5%2Fmenus%2Fmenu.html&var:style=style5&var:main=menu&var:menu=wizard&var:menutitle=http://rootshell.covertbay.com/&var:pagename=wizard_step4&var:pagetitle=VoIPHackbyRootShell

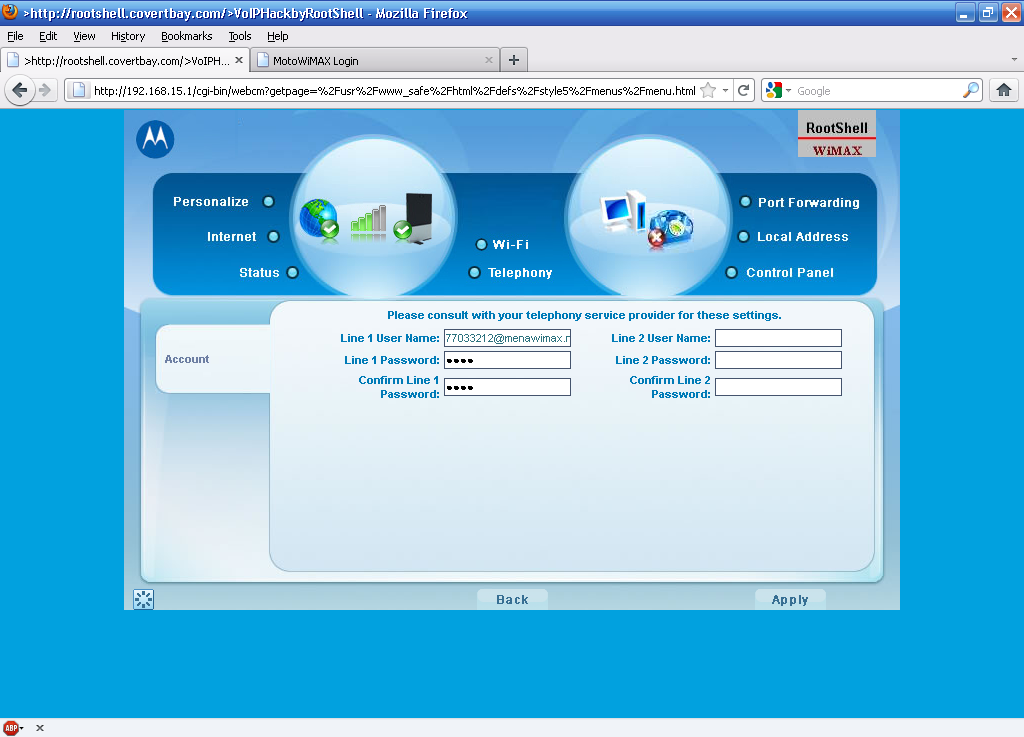

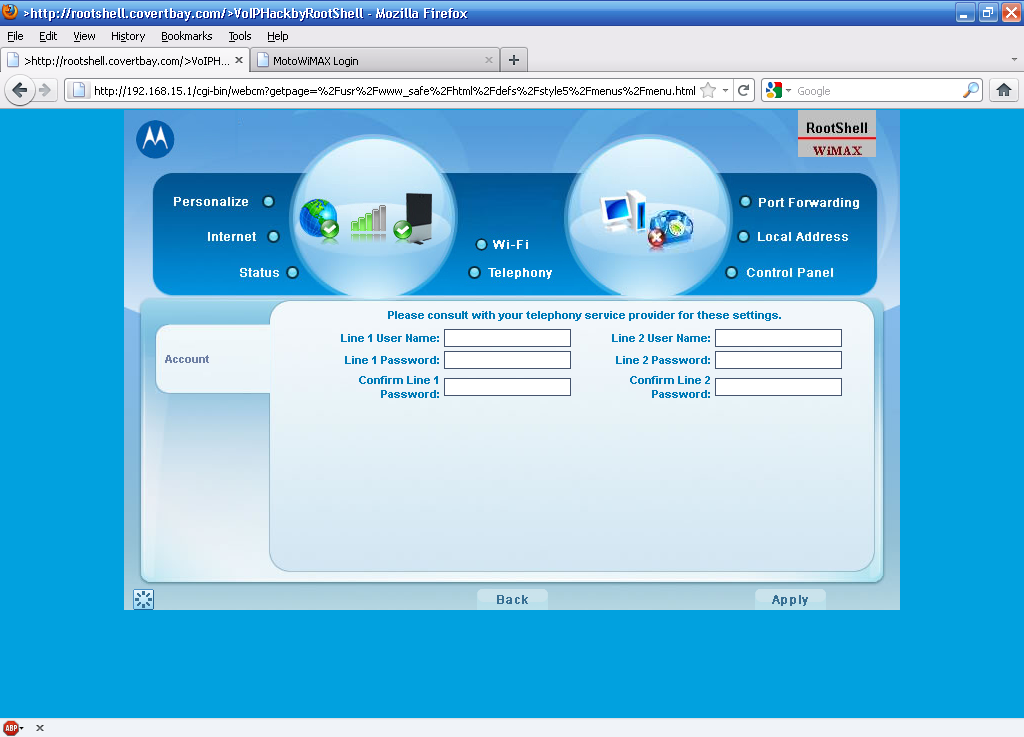

Add or Edit the VoIP details

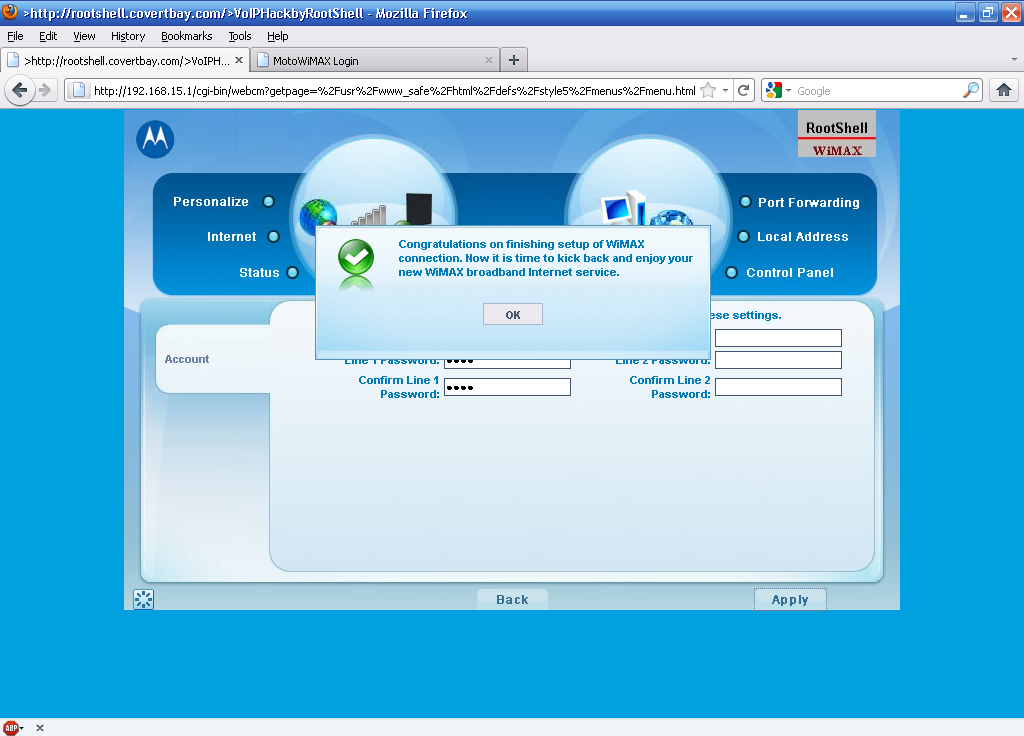

Click on Apply to save the settings

Few Valid Menatelecom's VoIP accounts:
can be used to make free calls..
(Accounts in format username: password)

77079075@menawimax.net : Mc9a
77033212@menawimax.net : ztD9

==========================================

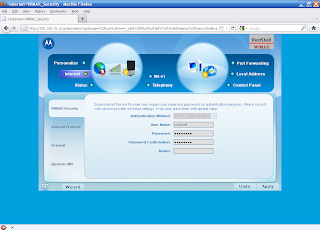

How to Change Menatelecom CPE WiMAX Internet settings (such as Username / Password)

Fields are not editable

Enter the following code after your Router's IP in navigation bar and press Enter

cgi-bin/webcm?getpage=%2Fusr%2Fwww_safe%2Fhtml%2Fdefs%2Fstyle5%2Fmenus%2Fmenu.html&var:style=style5&var:main=menu&var:menu=wizard&var:menutitle=http://rootshell.covertbay.com/&var:pagename=wizard_step3&var:pagetitle=WiMAX_RootShell

Full URL

http://192.168.15.1/cgi-bin/webcm?getpage=%2Fusr%2Fwww_safe%2Fhtml%2Fdefs%2Fstyle5%2Fmenus%2Fmenu.html&var:style=style5&var:main=menu&var:menu=wizard&var:menutitle=http://rootshell.covertbay.com/&var:pagename=wizard_step3&var:pagetitle=WiMAX_RootShell

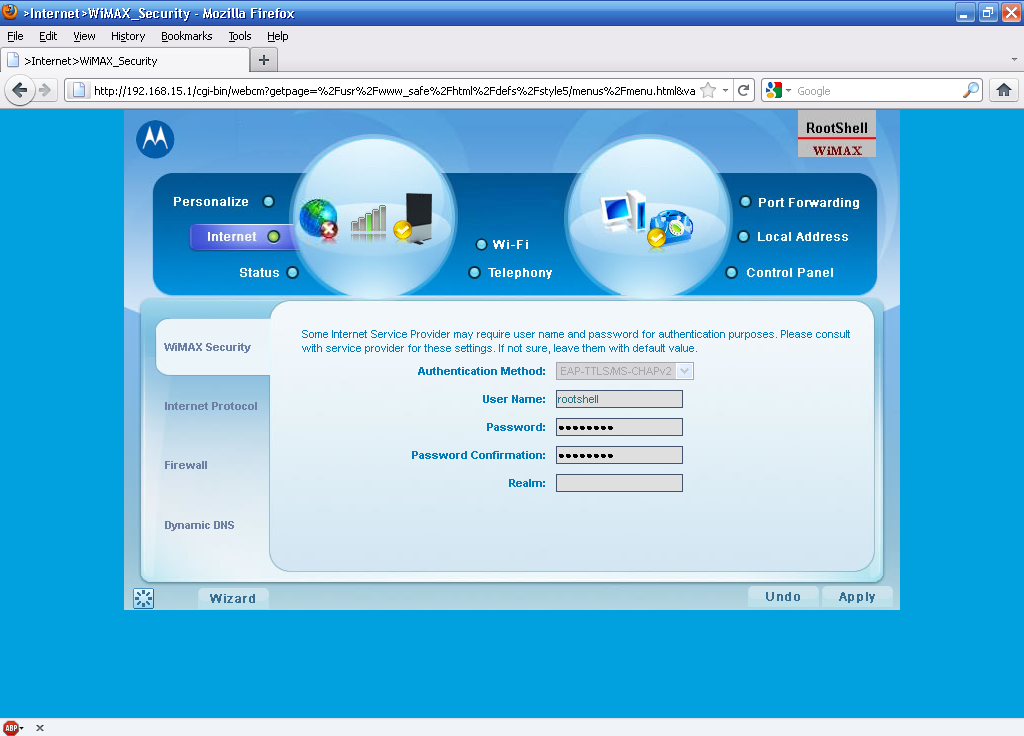

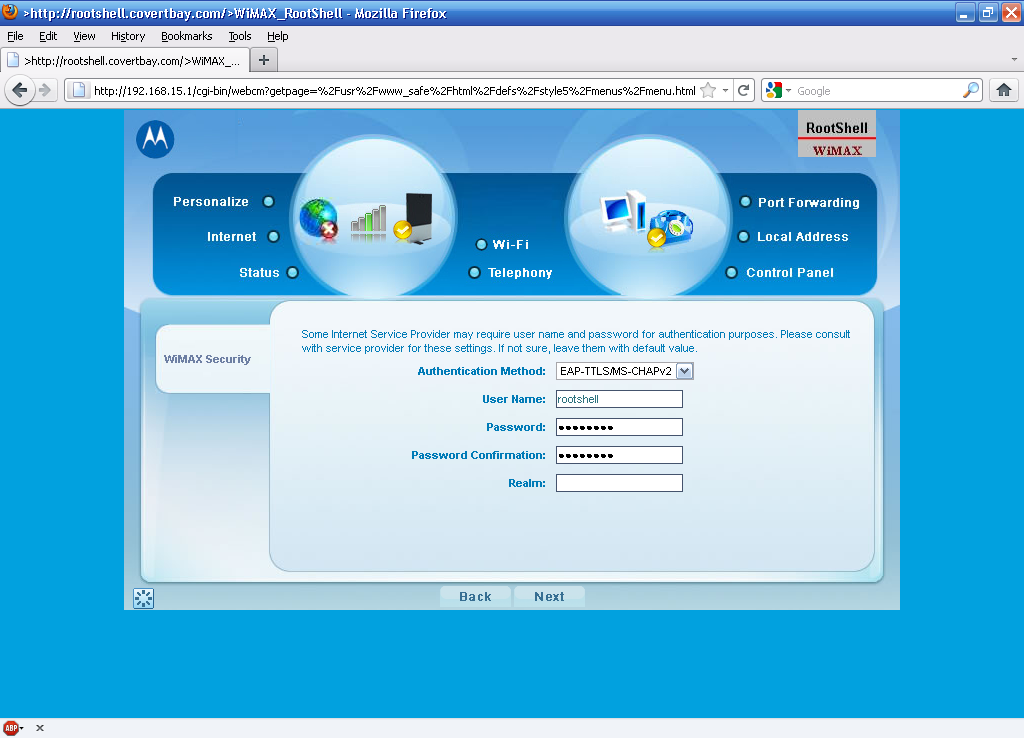

Now the fields are editable

Edit it
then Click Next and Apply

Download: Logo Upload hack page..
Or check My Downloads
END! Read more!

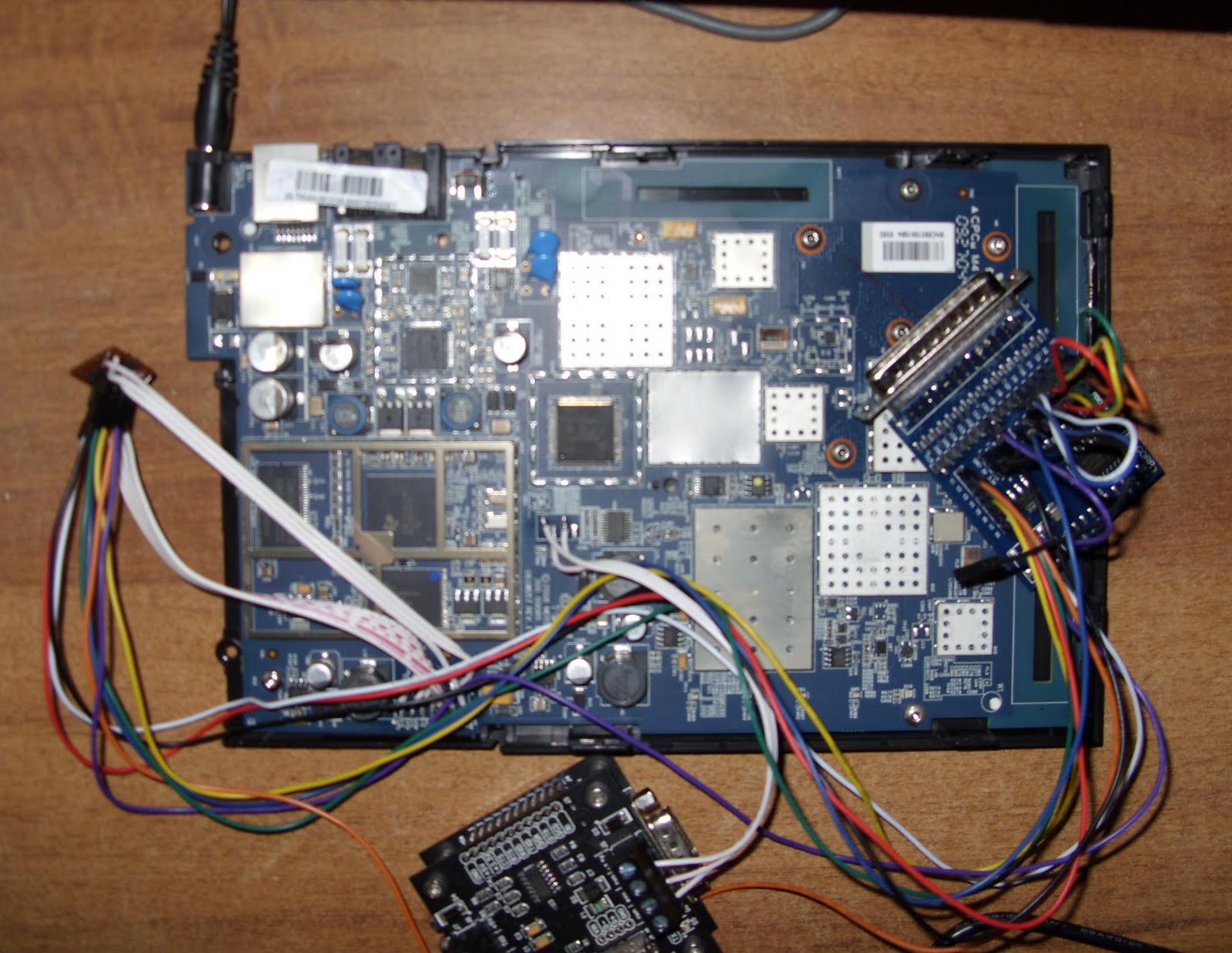

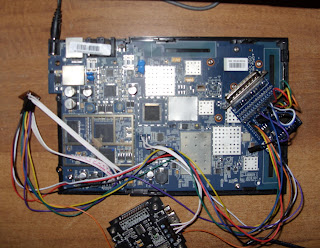

First JTAG attempt: Motorola CPEi35775 (from Menatelecom)

Motorola CPEi35775

openocd .... Halt error!

C:\openocd\bin>openocd -f openocd.cfg
Open On-Chip Debugger 0.5.0-dev (2010-10-28-22:42)
Licensed under GNU GPL v2
For bug reports, read
http://openocd.berlios.de/doc/doxygen/bugs.html
Warn : Adapter driver 'parport' did not declare which transports it allows; assu
ming legacy JTAG-only
Info : only one transport option; autoselect 'jtag'
parport port = 0x378
srst_only separate srst_gates_jtag srst_push_pull
0
Info : clock speed 500 kHz
Info : JTAG tap: tnetv1061.cpu tap/device found: 0x1b6c602f (mfg: 0x017, part: 0
xb6c6, ver: 0x1)
Info : accepting 'telnet' connection from 4444
Info : JTAG tap: tnetv1061.cpu tap/device found: 0x1b6c602f (mfg: 0x017, part: 0
xb6c6, ver: 0x1)
Info : JTAG tap: tnetv1061.cpu tap/device found: 0x1b6c602f (mfg: 0x017, part: 0
xb6c6, ver: 0x1)
Info : Halt timed out, wake up GDB.
Error: timed out while waiting for target halted
TARGET: tnetv1061.cpu - Not halted
Command handler execution failed
in procedure 'reset'

------------

Open On-Chip Debugger
> reset
JTAG tap: tnetv1061.cpu tap/device found: 0x1b6c602f (mfg: 0x017, part: 0xb6c6,
ver: 0x1)
> reset init
JTAG tap: tnetv1061.cpu tap/device found: 0x1b6c602f (mfg: 0x017, part: 0xb6c6,
ver: 0x1)
Halt timed out, wake up GDB.
timed out while waiting for target halted
TARGET: tnetv1061.cpu - Not halted
Command handler execution failed
in procedure 'reset'



End!

Read more!

WiMAX modems: Whose MAC can be changed

List of WiMAX modems whose MAC address can be changed to get FREE Internet

HUAWEI

BM635 (tested)
BM625 (similar to BM635)
BM622 (tested)
BM622i (tested)

and many more....
(almost all Huawei Wimax modems)

==================

ZyXEL

HES-319M (tested)
MAX-318M (tested)

==================

Motorola

CPEi 35775 (tested [needs device certificate])

==================


Most of the ISPs uses MAC address for authentication to allow a modem (with valid/active MAC) to get connected to the Network. So by changing the MAC, it is possible to get Free Internet....

END! Read more!

Menatelecom: Motorola CPEi35775 Config dump

Config.XML (of Menatelecom)
{private data ~removed~)

<config version="02.00.23.06.13" fsstamp="20100519094345"><entities><manager><settings><dependencies><connection><bridge><tops><lanbridge0/></tops></bridge><default><tops/></default></connection><encaps><default><bottoms><wmax/></bottoms></default></encaps></dependencies><ifaces><eth1>Ethernet</eth1><ap>DataAP</ap><ap1>VoiceAP</ap1></ifaces></settings></manager><logger><settings><loglevel>notice</loglevel><facility><logic>notice</logic><entity>notice</entity><module>notice</module><user>notice</user><voice>notice</voice><flash>notice</flash></facility><syslog enable="1">/dev/log</syslog><klog enable="1">/dev/klog</klog><mac_tag>1</mac_tag><logif>2</logif><spy>0</spy><flashlogmsgcount>10</flashlogmsgcount><flashlog><msg1/><msg2/><msg3/><msg4/><msg5/><msg6/><msg7/><msg8/><msg9/><msg10/></flashlog><logout_status>true</logout_status></settings></logger><security><settings><user id="0"><username>Tools</username><password>x</password><shadow>1</shadow><idle_timeout>30</idle_timeout><userlevel>TOOLS</userlevel><enabled>1</enabled><remote_enabled>0</remote_enabled></user><user id="1"><username>Root</username><password>~removed~</password><shadow>1</shadow><idle_timeout>20</idle_timeout><userlevel>ADMIN</userlevel><enabled>1</enabled><remote_enabled>0</remote_enabled></user><user id="2"><username>router</username><password>~removed~</password><shadow>1</shadow><idle_timeout>20</idle_timeout><userlevel>ROUTER</userlevel><enabled>1</enabled><remote_enabled>1</remote_enabled></user><user id="3"><username>Tech</username><password/><shadow>1</shadow><idle_timeout>10</idle_timeout><userlevel>USER</userlevel><enabled>0</enabled><remote_enabled>0</remote_enabled></user><cli><level_1>view</level_1><level_2>logger</level_2><level_3>nobody</level_3><level_4>nobody</level_4><level_5>Admin</level_5></cli></settings></security><dproxy><settings><state>1</state></settings></dproxy><pmtud><settings><state>1</state></settings></pmtud></entities><modules><provision><id>provision</id><active>1</active><lan>0</lan><settings><default><profileurl_2>tftp://profile.ti.net:69,21,2400</profileurl_2><imageurl>http://image.ti.net:80,8080</imageurl><imageurl_2>tftp://image.ti.net:69,21,2400</imageurl_2><dns1/><dns2/><dnspriority>VSP</dnspriority><path/><key_code/><adminpwd_crypt>~removed~</adminpwd_crypt><userpwd_crypt/><userstate>0</userstate><interval>60</interval><intervalimg>60</intervalimg><sntp>pool.ntp.org</sntp><provision_status>Unprovisioned</provision_status><tikeypub/><imagestate>1</imagestate><GAIN_20090508/><JITTER_LATENCY_20090625/><sdg_targetip>1.1.1.1</sdg_targetip><sdg_targetport>1111</sdg_targetport><sdg_pktsize>512</sdg_pktsize></default><BK_dns1/><BK_dns2/><VOICE_XML><PORT_1_CONFIG><ADMIN_STATUS>1</ADMIN_STATUS><RX_GAIN>0</RX_GAIN><TX_GAIN>0</TX_GAIN><RX_GAIN_AN>0</RX_GAIN_AN><TX_GAIN_AN>0</TX_GAIN_AN><LINE_EC>1</LINE_EC><SIGNALING_PROTOCOL>6</SIGNALING_PROTOCOL><RING_VOLTAGE>83</RING_VOLTAGE><RING_TYPE>TRAPEZOID_14</RING_TYPE><RING_DC_OFFSET>15</RING_DC_OFFSET><RING_FREQUENCY>20</RING_FREQUENCY><ON_HOOK_VOLTS>53</ON_HOOK_VOLTS><OFF_HOOK_CURRENT>23</OFF_HOOK_CURRENT><RX_ON_HOOK_DGTL_GAIN>0</RX_ON_HOOK_DGTL_GAIN><TX_ON_HOOK_DGTL_GAIN>-6</TX_ON_HOOK_DGTL_GAIN><RX_OFF_HOOK_DGTL_GAIN>0</RX_OFF_HOOK_DGTL_GAIN><TX_OFF_HOOK_DGTL_GAIN>-6</TX_OFF_HOOK_DGTL_GAIN><COUNTRY_SETTINGS>BAHRAIN</COUNTRY_SETTINGS><FLASH_MIN_DURATION>300</FLASH_MIN_DURATION><FLASH_MAX_DURATION>1000</FLASH_MAX_DURATION><CPC_WAIT>200</CPC_WAIT><CPC_DURATION>850</CPC_DURATION><RING_ID>17</RING_ID><CURRENT_RING_ID>0</CURRENT_RING_ID><CID_TYPE>NA</CID_TYPE><ETSI_CID_MODULATION>FSK</ETSI_CID_MODULATION><ETSI_CID_PROTOCOL>BETWEEN_RINGS</ETSI_CID_PROTOCOL><VMWI_TYPE>1</VMWI_TYPE><ETSI_VMWI_PROTOCOL>0</ETSI_VMWI_PROTOCOL><CW_TONE_ID>1</CW_TONE_ID><CW_REPEAT_ATTEMPTS>2</CW_REPEAT_ATTEMPTS><CW_REPEAT_INTERVAL>10000</CW_REPEAT_INTERVAL><BATT_REV_ON_LOCAL_CONNECT>0</BATT_REV_ON_LOCAL_CONNECT><BATT_REV_ON_REMOTE_CONNECT>0</BATT_REV_ON_REMOTE_CONNECT><BATT_REV_ON_RINGING>0</BATT_REV_ON_RINGING><CALL_LIMIT>65535</CALL_LIMIT><ANSWER_WAIT>120</ANSWER_WAIT><HANGUP_WAIT>30</HANGUP_WAIT><RTCP_ENABLE>1</RTCP_ENABLE><RTCP_RPT_INTERVAL>10000</RTCP_RPT_INTERVAL><RTCP_ENCRYPT_ELIGIBLE>0</RTCP_ENCRYPT_ELIGIBLE><PREF_CRYPTO_SUITE1>0</PREF_CRYPTO_SUITE1><PREF_CRYPTO_SUITE2>0</PREF_CRYPTO_SUITE2><PREF_CRYPTO_SUITE3>0</PREF_CRYPTO_SUITE3><PREF_CRYPTO_SUITE4>0</PREF_CRYPTO_SUITE4><PREF_CRYPTO_SUITE5>0</PREF_CRYPTO_SUITE5><CALL_FORWARD>1</CALL_FORWARD><XFER>1</XFER><CONFERENCING>1</CONFERENCING><MWI>1</MWI><MWI_STATE>0</MWI_STATE><SUBS_MWI>1</SUBS_MWI><CALL_WAITING>1</CALL_WAITING><CALLER_ID>1</CALLER_ID><ANON_CALL_BLOCK>1</ANON_CALL_BLOCK><NET_REG_CHECK>1</NET_REG_CHECK><DO_NOT_DISTURB>1</DO_NOT_DISTURB><REPEAT_DIAL>1</REPEAT_DIAL><CALL_RETURN>1</CALL_RETURN><MSG_DISPLAY>0</MSG_DISPLAY><REG_RINGPING>0</REG_RINGPING><CID_TRANSFORMATION>0</CID_TRANSFORMATION><EMGNCY_CALL>1</EMGNCY_CALL><TONE_PLAY>1</TONE_PLAY><RPT_DIAL_INTERVAL>120</RPT_DIAL_INTERVAL><RPT_DIAL_DURATION>960</RPT_DIAL_DURATION><CID_DEFAULT>1</CID_DEFAULT><CID_EMERGENCY>1</CID_EMERGENCY><ACBLOCK_DEFAULT>0</ACBLOCK_DEFAULT><CW_DEFAULT>1</CW_DEFAULT><TONE_PLAY_ID>44</TONE_PLAY_ID><ANON_UNBLOCK>1</ANON_UNBLOCK><ANON_BLOCK>1</ANON_BLOCK><CALL_HOLD>1</CALL_HOLD><FCODE_CALLHOLD/><FCODE_CFU/><FCODE_CCFWD/><FCODE_CFB/><FCODE_CFB_NUMBER/><FCODE_CCFWDB/><FCODE_CFN/><FCODE_CFN_NUMBER/><FCODE_CCFWDN/><FCODE_CFREACT/><FCODE_CID_BLOCK/><FCODE_CID_UNBLOCK/><FCODE_CW_DISABLE/><FCODE_XFER>*94</FCODE_XFER><FCODE_AXFER>*95</FCODE_AXFER><FCODE_ANON_BLOCK/><FCODE_ANON_UNBLOCK/><FCODE_DND>*78</FCODE_DND><FCODE_CDND>*79</FCODE_CDND><FCODE_RPT_DIAL/><FCODE_CALL_RETURN/><FCODE_CALL_RETURN_DEACTIVATE/><FCODE_RECALL_ACTIVATE/><FCODE_RECALL_DEACTIVATE/><FCODE_EMERGENCY/><FCODE_PCM_OVERRIDE/><MWI_NUMBER>77000</MWI_NUMBER><CFU>1</CFU><CFU_ACT>0</CFU_ACT><CFU_NUMBER/><CFN>1</CFN><CFN_ACT>0</CFN_ACT><CFN_NUMBER/><CFN_RING_COUNT>6</CFN_RING_COUNT><CFB>1</CFB><CFB_ACT>0</CFB_ACT><CFB_NUMBER/><DIGIT_MAP>*XX.T|*XX.#|XX.T|XX.#|****|*XXXX*X.#|*XXXX*X.T|*XX*X.*X.*X.T|*XX*X.*X.*X.#</DIGIT_MAP><TERM_DIGIT/><PAR_DIGIT_TIMER>5</PAR_DIGIT_TIMER><CRIT_DIGIT_TIMER>5</CRIT_DIGIT_TIMER><DIAL_TIMEOUT>60</DIAL_TIMEOUT><FIRST_DIAL_TIMEOUT>30</FIRST_DIAL_TIMEOUT><PREF_VOICE_CODEC>PCMU</PREF_VOICE_CODEC><PREF_FAX_CODEC>PCMU</PREF_FAX_CODEC><PREF_MODEM_CODEC>PCMU</PREF_MODEM_CODEC><PREF_PTIME_VOICE>20</PREF_PTIME_VOICE><PREF_PTIME_DATA>20</PREF_PTIME_DATA><USER_DOMAIN>menawimax.net</USER_DOMAIN><AUTH_USER_NAME>~removed~@menawimax.net</AUTH_USER_NAME><AUTH_USER_PASSWD>~removed~</AUTH_USER_PASSWD><PROXY_FQDN>voip.menawimax.net</PROXY_FQDN><PROXY_PORT>5060</PROXY_PORT><REG_FQDN>voip.menawimax.net</REG_FQDN><REG_PORT>5060</REG_PORT><P_FROM>%D ac_only</P_FROM><TLS_PROXY/><TLS_PROXY_PORT/><TLS_RECOVER_TO>60</TLS_RECOVER_TO><TLS_ENABLE>0</TLS_ENABLE><CID_NAME/><CID_NUMBER/><DIRECTORY_NUMBER/><PROVIDER_NAME/><PROVIDER_URL/><PROVIDER_NUMBER/><SIP_URI/><SIP_CONTACT_URI/><CONFERENCEFACTORYURI>conf@menawimax.net</CONFERENCEFACTORYURI><STUNEnable>0</STUNEnable><CALLER_ID_NAME>1</CALLER_ID_NAME><PayphoneSupportEnable>0</PayphoneSupportEnable><STUNServer/><VerticalService_1>Redial</VerticalService_1><VerticalService_2>Blind Call Transfer</VerticalService_2><VerticalService_3>Consultation Call Transfer</VerticalService_3><VerticalService_4>Call Hold</VerticalService_4><VerticalService_5>Automatic Recall Activate</VerticalService_5><VerticalService_6>Automatic Recall Deactivate</VerticalService_6><VerticalService_7>Call Forwarding Activate</VerticalService_7><VerticalService_8>Call Forwarding Deactivate</VerticalService_8><VerticalService_9>Call Forwarding Busy Activate</VerticalService_9><VerticalService_10>Call Forwarding Busy Deactivate</VerticalService_10><VerticalService_11>Call Forwarding Busy Change Number</VerticalService_11><VerticalService_12>Call Forwarding No Answer Activate</VerticalService_12><VerticalService_13>Call Forwarding No Answer Deactivate</VerticalService_13><VerticalService_14>Call Forwarding No Answer Change Number</VerticalService_14><VerticalService_15>Automatic Callback Activate</VerticalService_15><VerticalService_16>Automatic Callback Deactivate</VerticalService_16><VerticalService_17>Do Not Disturb Activate</VerticalService_17><VerticalService_18>Do Not Disturb Deactivate</VerticalService_18><VerticalService_19>Calling Number Delivery Blocking</VerticalService_19><VerticalService_20>Line Blocking Deactivate</VerticalService_20><VerticalService_21>Call Waiting Toggle</VerticalService_21><VerticalService_22>Anonymous Call Rejection Activate</VerticalService_22><VerticalService_23>Anonymous Call Rejection Deactivate</VerticalService_23></PORT_1_CONFIG><PORT_2_CONFIG><ADMIN_STATUS>1</ADMIN_STATUS><RX_GAIN>0</RX_GAIN><TX_GAIN>0</TX_GAIN><RX_GAIN_AN>0</RX_GAIN_AN><TX_GAIN_AN>0</TX_GAIN_AN><LINE_EC>1</LINE_EC><SIGNALING_PROTOCOL>6</SIGNALING_PROTOCOL><RING_VOLTAGE>83</RING_VOLTAGE><RING_TYPE>TRAPEZOID_14</RING_TYPE><RING_DC_OFFSET>15</RING_DC_OFFSET><RING_FREQUENCY>20</RING_FREQUENCY><ON_HOOK_VOLTS>53</ON_HOOK_VOLTS><OFF_HOOK_CURRENT>23</OFF_HOOK_CURRENT><RX_ON_HOOK_DGTL_GAIN>0</RX_ON_HOOK_DGTL_GAIN><TX_ON_HOOK_DGTL_GAIN>-7</TX_ON_HOOK_DGTL_GAIN><RX_OFF_HOOK_DGTL_GAIN>0</RX_OFF_HOOK_DGTL_GAIN><TX_OFF_HOOK_DGTL_GAIN>-7</TX_OFF_HOOK_DGTL_GAIN><COUNTRY_SETTINGS>BAHRAIN</COUNTRY_SETTINGS><FLASH_MIN_DURATION>300</FLASH_MIN_DURATION><FLASH_MAX_DURATION>1000</FLASH_MAX_DURATION><CPC_WAIT>200</CPC_WAIT><CPC_DURATION>850</CPC_DURATION><RING_ID>0</RING_ID><CURRENT_RING_ID>0</CURRENT_RING_ID><CID_TYPE>NA</CID_TYPE><ETSI_CID_MODULATION>FSK</ETSI_CID_MODULATION><ETSI_CID_PROTOCOL>BETWEEN_RINGS</ETSI_CID_PROTOCOL><VMWI_TYPE>1</VMWI_TYPE><ETSI_VMWI_PROTOCOL>0</ETSI_VMWI_PROTOCOL><CW_TONE_ID>1</CW_TONE_ID><CW_REPEAT_ATTEMPTS>2</CW_REPEAT_ATTEMPTS><CW_REPEAT_INTERVAL>10000</CW_REPEAT_INTERVAL><BATT_REV_ON_LOCAL_CONNECT>0</BATT_REV_ON_LOCAL_CONNECT><BATT_REV_ON_REMOTE_CONNECT>0</BATT_REV_ON_REMOTE_CONNECT><BATT_REV_ON_RINGING>0</BATT_REV_ON_RINGING><CALL_LIMIT>65535</CALL_LIMIT><ANSWER_WAIT>120</ANSWER_WAIT><HANGUP_WAIT>30</HANGUP_WAIT><RTCP_ENABLE>1</RTCP_ENABLE><RTCP_RPT_INTERVAL>10000</RTCP_RPT_INTERVAL><RTCP_ENCRYPT_ELIGIBLE>0</RTCP_ENCRYPT_ELIGIBLE><PREF_CRYPTO_SUITE1>0</PREF_CRYPTO_SUITE1><PREF_CRYPTO_SUITE2>0</PREF_CRYPTO_SUITE2><PREF_CRYPTO_SUITE3>0</PREF_CRYPTO_SUITE3><PREF_CRYPTO_SUITE4>0</PREF_CRYPTO_SUITE4><PREF_CRYPTO_SUITE5>0</PREF_CRYPTO_SUITE5><CALL_FORWARD>1</CALL_FORWARD><XFER>1</XFER><CONFERENCING>1</CONFERENCING><MWI>1</MWI><MWI_STATE>0</MWI_STATE><SUBS_MWI>1</SUBS_MWI><CALL_WAITING>1</CALL_WAITING><CALLER_ID>1</CALLER_ID><ANON_CALL_BLOCK>1</ANON_CALL_BLOCK><NET_REG_CHECK>1</NET_REG_CHECK><DO_NOT_DISTURB>1</DO_NOT_DISTURB><REPEAT_DIAL>1</REPEAT_DIAL><CALL_RETURN>1</CALL_RETURN><MSG_DISPLAY>0</MSG_DISPLAY><REG_RINGPING>0</REG_RINGPING><CID_TRANSFORMATION>0</CID_TRANSFORMATION><EMGNCY_CALL>1</EMGNCY_CALL><TONE_PLAY>1</TONE_PLAY><RPT_DIAL_INTERVAL>120</RPT_DIAL_INTERVAL><RPT_DIAL_DURATION>960</RPT_DIAL_DURATION><CID_DEFAULT>1</CID_DEFAULT><CID_EMERGENCY>1</CID_EMERGENCY><ACBLOCK_DEFAULT>0</ACBLOCK_DEFAULT><CW_DEFAULT>1</CW_DEFAULT><TONE_PLAY_ID>44</TONE_PLAY_ID><ANON_UNBLOCK>1</ANON_UNBLOCK><ANON_BLOCK>1</ANON_BLOCK><CALL_HOLD>1</CALL_HOLD><FCODE_CALLHOLD/><FCODE_CFU/><FCODE_CCFWD/><FCODE_CFB/><FCODE_CFB_NUMBER/><FCODE_CCFWDB/><FCODE_CFN/><FCODE_CFN_NUMBER/><FCODE_CCFWDN/><FCODE_CFREACT/><FCODE_CID_BLOCK/><FCODE_CID_UNBLOCK/><FCODE_CW_DISABLE/><FCODE_XFER>*94</FCODE_XFER><FCODE_AXFER>*95</FCODE_AXFER><FCODE_ANON_BLOCK/><FCODE_ANON_UNBLOCK/><FCODE_DND>*78</FCODE_DND><FCODE_CDND>*79</FCODE_CDND><FCODE_RPT_DIAL/><FCODE_CALL_RETURN/><FCODE_CALL_RETURN_DEACTIVATE/><FCODE_RECALL_ACTIVATE/><FCODE_RECALL_DEACTIVATE/><FCODE_EMERGENCY/><FCODE_PCM_OVERRIDE/><MWI_NUMBER>77000</MWI_NUMBER><CFU>1</CFU><CFU_ACT>0</CFU_ACT><CFU_NUMBER/><CFN>1</CFN><CFN_ACT>0</CFN_ACT><CFN_NUMBER/><CFN_RING_COUNT>6</CFN_RING_COUNT><CFB>1</CFB><CFB_ACT>0</CFB_ACT><CFB_NUMBER/><DIGIT_MAP>*XX.T|*XX.#|XX.T|XX.#|****|*XXXX*X.#|*XXXX*X.T|*XX*X.*X.*X.T|*XX*X.*X.*X.#</DIGIT_MAP><TERM_DIGIT/><PAR_DIGIT_TIMER>5</PAR_DIGIT_TIMER><CRIT_DIGIT_TIMER>5</CRIT_DIGIT_TIMER><DIAL_TIMEOUT>60</DIAL_TIMEOUT><FIRST_DIAL_TIMEOUT>30</FIRST_DIAL_TIMEOUT><PREF_VOICE_CODEC>PCMU</PREF_VOICE_CODEC><PREF_FAX_CODEC>PCMU</PREF_FAX_CODEC><PREF_MODEM_CODEC>PCMU</PREF_MODEM_CODEC><PREF_PTIME_VOICE>20</PREF_PTIME_VOICE><PREF_PTIME_DATA>20</PREF_PTIME_DATA><USER_DOMAIN>menawimax.net</USER_DOMAIN><AUTH_USER_NAME/><AUTH_USER_PASSWD/><PROXY_FQDN>voip.menawimax.net</PROXY_FQDN><PROXY_PORT>5060</PROXY_PORT><REG_FQDN>voip.menawimax.net</REG_FQDN><REG_PORT>5060</REG_PORT><P_FROM>%D ac_only</P_FROM><TLS_PROXY/><TLS_PROXY_PORT/><TLS_RECOVER_TO>60</TLS_RECOVER_TO><TLS_ENABLE>0</TLS_ENABLE><CID_NAME/><CID_NUMBER/><DIRECTORY_NUMBER/><PROVIDER_NAME/><PROVIDER_URL/><PROVIDER_NUMBER/><SIP_URI/><SIP_CONTACT_URI/><CONFERENCEFACTORYURI>conf@menawimax.net</CONFERENCEFACTORYURI><STUNEnable>0</STUNEnable><CALLER_ID_NAME>1</CALLER_ID_NAME><PayphoneSupportEnable>0</PayphoneSupportEnable><STUNServer/><VerticalService_1>Redial</VerticalService_1><VerticalService_2>Blind Call Transfer</VerticalService_2><VerticalService_3>Consultation Call Transfer</VerticalService_3><VerticalService_4>Call Hold</VerticalService_4><VerticalService_5>Automatic Recall Activate</VerticalService_5><VerticalService_6>Automatic Recall Deactivate</VerticalService_6><VerticalService_7>Call Forwarding Activate</VerticalService_7><VerticalService_8>Call Forwarding Deactivate</VerticalService_8><VerticalService_9>Call Forwarding Busy Activate</VerticalService_9><VerticalService_10>Call Forwarding Busy Deactivate</VerticalService_10><VerticalService_11>Call Forwarding Busy Change Number</VerticalService_11><VerticalService_12>Call Forwarding No Answer Activate</VerticalService_12><VerticalService_13>Call Forwarding No Answer Deactivate</VerticalService_13><VerticalService_14>Call Forwarding No Answer Change Number</VerticalService_14><VerticalService_15>Automatic Callback Activate</VerticalService_15><VerticalService_16>Automatic Callback Deactivate</VerticalService_16><VerticalService_17>Do Not Disturb Activate</VerticalService_17><VerticalService_18>Do Not Disturb Deactivate</VerticalService_18><VerticalService_19>Calling Number Delivery Blocking</VerticalService_19><VerticalService_20>Line Blocking Deactivate</VerticalService_20><VerticalService_21>Call Waiting Toggle</VerticalService_21><VerticalService_22>Anonymous Call Rejection Activate</VerticalService_22><VerticalService_23>Anonymous Call Rejection Deactivate</VerticalService_23></PORT_2_CONFIG><COMMON_CODING_CONFIG><VAD_ENABLE>1</VAD_ENABLE><DIGIT_RELAY_MODE>1</DIGIT_RELAY_MODE><VOICE_PLAYOUT_MODE>1</VOICE_PLAYOUT_MODE><NOM_DELAY>90</NOM_DELAY><MAX_DELAY>130</MAX_DELAY><MIN_DELAY>20</MIN_DELAY><NOM_DELAY_PASSTHROUGH>75</NOM_DELAY_PASSTHROUGH><NOM_DELAY_DATA_RELAY>200</NOM_DELAY_DATA_RELAY><SPY_LEVEL>0</SPY_LEVEL><RING_ENABLE>111111111111</RING_ENABLE><RING0_NAME>http://127.0.0.1/ims/standard_ring</RING0_NAME><RING1_NAME>http://127.0.0.1/ims/dst_ring_1</RING1_NAME><RING2_NAME>http://127.0.0.1/ims/dst_ring_2</RING2_NAME><RING3_NAME>http://127.0.0.1/ims/dst_ring_3</RING3_NAME><RING4_NAME>http://127.0.0.1/ims/dst_ring_4</RING4_NAME><RING5_NAME>http://127.0.0.1/ims/dst_ring_5</RING5_NAME><RING6_NAME>alert-external</RING6_NAME><RING7_NAME>alert-internal</RING7_NAME><RING14_NAME>R8</RING14_NAME><RING15_NAME>R9</RING15_NAME><RING16_NAME>Rg</RING16_NAME><RING17_NAME>Rs</RING17_NAME><RING0_CADENCE>005000FFFFF000000000000000</RING0_CADENCE><RING1_CADENCE>004000FFFFF00000000000</RING1_CADENCE><RING2_CADENCE>004000FF0FF00000000000</RING2_CADENCE><RING3_CADENCE>004000F3CFF00000000000</RING3_CADENCE><RING4_CADENCE>004000E7FE700000000000</RING4_CADENCE><RING5_CADENCE>004000F800000000000008</RING5_CADENCE><RING6_CADENCE>004000FFC0000000000000</RING6_CADENCE><RING7_CADENCE>004000F800000000000008</RING7_CADENCE><RING14_CADENCE>007800FFFFFFFFFF00000000000000000000</RING14_CADENCE><RING15_CADENCE>007800FFFFFFFFFF00000000000000000000</RING15_CADENCE><RING16_CADENCE>007800FFFFFFFFFF00000000000000000000</RING16_CADENCE><RING17_CADENCE>007800FFFFFFFFFF00000000000000000000</RING17_CADENCE><DIAL_TONE>350:-130,440:-130,0:0,0:0,-1</DIAL_TONE><BUSY_TONE>
480:-240,620:-240,0:0,0:0,500;
0:0,0:0,0:0,0:0,500
</BUSY_TONE><RINGBACK_TONE>
440:-190,480:-190,0:0,0:0,200;
0:0,0:0,0:0,0:0,400
</RINGBACK_TONE><REMOTE_DISCONNECT_TONE>
480:-240,620:-240,0:0,0:0,750;
0:0,0:0,0:0,0:0,750
</REMOTE_DISCONNECT_TONE><DISCONNECT_TONE>
400:-240,620:-240,0:0,0:0,250;
0:0,0:0,0:0,0:0,250;
400:-240,620:-240,0:0,0:0,250;
0:0,0:0,0:0,0:0,-1
</DISCONNECT_TONE><OUT_OF_SERVICE_TONE>
950:-130,0:0,0:0,0:0,330;
1400:-130,0:0,0:0,0:0,330;
1800:-130,0:0,0:0,0:0,330;
0:0,0:0,0:0,0:0,5000;
</OUT_OF_SERVICE_TONE><CONGESTION_TONE>
400:-240,620:-240,0:0,0:0,250;
0:0,0:0,0:0,0:0,250
</CONGESTION_TONE><OFFHOOK_NOTICE>
1400:-130,2060:-130,3450:-130,0:0,100;
0:0,0:0,0:0,0:0,100
</OFFHOOK_NOTICE><OFFHOOK_ALERT>
1400:30,2060:30,3450:30,0:0,100;
0:0,0:0,0:0,0:0,100
</OFFHOOK_ALERT><CW1_TONE>
440:-130,0:0,0:0,0:0,300,10000,2,0;
</CW1_TONE><CW2_TONE>
440:-130,0:0,0:0,0:0,100;
0:0,0:0,0:0,0:0,100;
440:-130,0:0,0:0,0:0,100;
0:0,0:0,0:0,0:0,-1
</CW2_TONE><CW3_TONE>
440:-130,0:0,0:0,0:0,100;
0:0,0:0,0:0,0:0,100;
440:-130,0:0,0:0,0:0,100;
0:0,0:0,0:0,0:0,100;
440:-130,0:0,0:0,0:0,100;
0:0,0:0,0:0,0:0,-1
</CW3_TONE><CW4_TONE>
440:-130,0:0,0:0,0:0,100;
0:0,0:0,0:0,0:0,100;
440:-130,0:0,0:0,0:0,300;
0:0,0:0,0:0,0:0,100;
440:-130,0:0,0:0,0:0,100;
0:0,0:0,0:0,0:0,-1
</CW4_TONE><MWI_TONE>
350:-130,440:-130,0:0,0:0,100,100,10,0;
350:-130,440:-130,0:0,0:0,-1
</MWI_TONE><DIGIT_TX_PT>127</DIGIT_TX_PT><DIGIT_RX_PT>127</DIGIT_RX_PT><PCMU_PT>0</PCMU_PT><PCMA_PT>8</PCMA_PT><G726_FORMAT>1</G726_FORMAT><G726_40_PT>100</G726_40_PT><G726_32_PT>101</G726_32_PT><G726_16_PT>103</G726_16_PT><G726_24_PT>102</G726_24_PT><G729_PT>18</G729_PT><G723_PT>-1</G723_PT><RTP_T38_PT>-1</RTP_T38_PT><T38_RED_PT>120</T38_RED_PT><UDP_T38_PT>96</UDP_T38_PT><EVRC_PT>-1</EVRC_PT><VVBD_PT>-1</VVBD_PT><VVBD_RED_PT>-1</VVBD_RED_PT><VVBD_ENCODING>PCMU</VVBD_ENCODING><GSM_FR_PT>-1</GSM_FR_PT><AMR_PT>-1</AMR_PT><ILBC_PT>122</ILBC_PT><ILBC_30_PT>-1</ILBC_30_PT><T38_ENABLE>1</T38_ENABLE><iLBC_ENABLE>1</iLBC_ENABLE><G729E_ENABLE>1</G729E_ENABLE><G729_ENABLE>1</G729_ENABLE><G726-40_ENABLE>1</G726-40_ENABLE><G726-32_ENABLE>1</G726-32_ENABLE><G726-24_ENABLE>1</G726-24_ENABLE><G726-16_ENABLE>1</G726-16_ENABLE><PCMU_ENABLE>1</PCMU_ENABLE><PCMA_ENABLE>1</PCMA_ENABLE><T38-UDP_PRI>1</T38-UDP_PRI><G729_PRI>2</G729_PRI><PCMU_PRI>9</PCMU_PRI><PCMA_PRI>3</PCMA_PRI><G726-40_PRI>5</G726-40_PRI><G726-32_PRI>6</G726-32_PRI><G726-24_PRI>7</G726-24_PRI><G726-16_PRI>8</G726-16_PRI><iLBC_PRI>4</iLBC_PRI><G729E_PRI>10</G729E_PRI><FAXMODEM_TONE_DETECT>1</FAXMODEM_TONE_DETECT><V18_TONE_DETECT>1</V18_TONE_DETECT><T38_RED_LEVEL>2</T38_RED_LEVEL><TEL_SERVICE_ID>Mena Telecom</TEL_SERVICE_ID><CALL_FORWARD_VER>0</CALL_FORWARD_VER><CALL_TRANSFER_VER>0</CALL_TRANSFER_VER><CONFERENCING_VER>0</CONFERENCING_VER><MWI_VER>1</MWI_VER><CALL_WAITING_VER>0</CALL_WAITING_VER><CALLER_ID_VER>0</CALLER_ID_VER><ANON_CALL_BLOCK_VER>0</ANON_CALL_BLOCK_VER><NET_REG_CHECK_VER>0</NET_REG_CHECK_VER><DO_NOT_DISTURB_VER>0</DO_NOT_DISTURB_VER><REPEAT_DIAL_VER>0</REPEAT_DIAL_VER><CALL_RETURN_VER>0</CALL_RETURN_VER><EMERGENCY_CALL_VER>1</EMERGENCY_CALL_VER><MSG_DISPLAY_VER>2</MSG_DISPLAY_VER><REG_RINGPING_VER>0</REG_RINGPING_VER><VRMSG_DND/><VRMSG_NOIP/><VRMSG_WANDOWN/><VRMSG_DNSFAIL/><VRMSG_REGFAIL> </VRMSG_REGFAIL><VRMSG_UNPROV>+CvvQAD62wAH1nhC0u6TStvXCVZaPE/hPxrb7jpWYBN+Tlla2yqZVnhTzPjYCtvvcFZyIl4uJ7rbp11WKIzruN4o2zSx1gJK09XcWucFhdf2IYq1Y/LbyWfG3dMHReLlrZXeAjMTSqxqAtBH4XDpqRnMeNYOuC7VwxUWFFWEv52D5T4WI4Iz1sBmR3LDUNaNZzW73RQxUQlYr/CX0PEDCXvMmDuOwc8cNuobBxhnmImOMio+TtOWUHFmdqLkVXsc2CWV4VEnTcpJUZigi8dTlhz7Fu1Z0DpsMSSblUGfmg+M969Y8aFOH5rIwo4vdAy4JlHbNY9nWuM5jiFBnemNJhsvXYRpmp9aRJjOjMHSIFsncJHyws8YtrpD6HIOeGXEGF9UsYapQdiaAMDyINPl3AWbA5iZgCeI5prIklyPQogcjyAHT/CWCGRYckOG8XaeD7cFwDIY/Vn4nsypRTaLC1QpPjJcZXJfoQskY/S9iKQ9VUkQKRQVXlfGLIFa/Wilc1JzZGTFA6xor4kwG30WAR0Oqt+jqVVtn/jOXCt/MwlsCctLbhUqkH4pUxmkYW77qz2KUxRAzntuXSumtSvzthSYTo/rfbhhcEvOSG7cq+hoUu+ak9luE2ujD55yIdpPD+wsHZzzcfB9Om6c7Ilxo3BoY/EDFS05rN70O4J/SQMttJ7rcZDi+w9HbnW4c/LcQHok++4/vpBvYrbBQx3t+vY8KlBPlY9CLqrgSXDhgMyPRC2l795yYYD4QUOuu7phcFCmkX8Tq3a4jK84asNO5W5prpfxcJuTZEytpdDQ8FVCM3/g7NmjRvCB34d+zawVRUDxG5rJf5SsVebh8WU0un/lK/MER22Cwz48yysnVTdOXEyKf1SqmL7BMFEQmDXt6/Kfsc7Xmj4+F6pUxRcuMAN3PF4pysmRDsPLTwZF6RZwwE2mefs1Tah3lTnPi2u+Li9npA+P1IiPcq7rp3spKwY3CYKuHiT/lXtRA47YLvjjECHIc065nzyLIrHQI23H1lMNB+bBEIDOzqHSaFa4FS7H+8gI35ApuXb0WrxrbqVqaPk3GZooGYYbop/aDuU88hgpVOhLtxK5VoUrj1z6IKnErQkfKc7l6hPm32AD3xPi8B1P57V2NzGAyRoCE6uiFDmO30hYhCrtto34SHVjG4AP7bWEc5dPPpyQSHGOEZgJIMaegArvRIpfmHqzWEALbi2yLhkz3dwECyzOa2sFHMOQYirtKg1KSZ6PFpeah4DUKk81PV67P7P3dsVAo4VGTVbvm3by7/VEH3mPLFWFwlLTD8CNAPjNOyqG3vFAPkgn8XDiv7fzFd4N6k4xo6FVrsX/VOs0m7elTIHI/0QqlJhBNjYwS07makOQprHqwIk+3CpKhdFxrmELZBGqgxyf8rd7j05WasewvVG2WfFd4SrKxEHza7nPThfrN70f8L3cuGvj62HKkNLbU0xpy6uqaJfUaX82I5OiddZqHbHt1EHLqypnbg8VzxIzyaxUNIoUePJSCPV9l/lqEv8Gnnla8ZawH1aa194zRWrfULIWaMyaIoOJ7OvKz/EC0zhdlQuFggaGv9YVA1Ll61IWmgYXEcl3zi/LaGDfnvYvnr/18n+RQp1HjxzZOmBuJeF4tEcBhrHWxLHaAjUA/cOfilCCksKHCCFqtxbMuV7fiVvfl89cfZp5R4l6jOI03JFHKH8fUGh7x6ORvdNCOYSo4UjY0+E83J+LadsIIhnYt0Ck6OYcc5nYf3vGHBwnNXUdnTPBkSiHLNc4mkEwfpIka64qLoJOakM+JAMxS+zCL8q2f6wCLFpycnHu9pm9UayIaIdEcWm1+pVovNZocXiOBXpQJ6uNifZVAwN6D2h9eZ8y8kFlPOlpEj3OMgAm7Ho6KVu9l3E8Hth6USmbRK3gMQXyeogrc/GvD2PS/LgpbBal1lj4fbrYgOu0UIxc6P062Ioxwqk80fkYDtiAow2waJjLuOLYhy+LLWEZpDr/WIoie3HmGpb5bFiIq20OV9GrQsK8SOnIZL8asEt8vF8lGETNOevERZ4GJUw+/xvLqbU8FWUPdV76ifUNHIGn6MzPEaCBMTxbJ+P8tvG2Us8eD+f8XC8y3TuIPo8oehOLUXeGsCh7qpXPXB+gsVKukSbUvDFoJqsSLlFnYxDvcTNi0zkBp3krA/TuPk5p66kJlJgRjfdADerpVB8iEjz7lveAKOqp2xtD0UC1QXN7tjWAJELHUJe6rQiyFmiw8mCp6Df92VGxl0xkOqmKmjnCivt6HOU15I5eTcWrTlyaXSP2blpqH0AU65lGvn8al6z61hd9hG84SnSIQQcZdjoh2F3Luxw0FomrPF4NaDRAi6h7CzYOEBpWxqfZINHV3K6esQW5tSj0GHeKEWB7flUmSXXZjr0tiT4YJVz3w/El0aM8XSZBiIsyRF8/fokmnY8W/VTuwvqaKDg2nDxryJUQAeh67V380ahK+k/oaSPNEzWIUgBI6cfKfBkiEBLoTWu6Q2uHkwHSIlpr9ZeoDM30+2ruacIUe1EZ0lpIS6kW+B9OenqTAEmpENKoJHIkESooZ7wfQir2hJXqKyQ/8GbuF6KRukoi7R7YLu1klbxo4ahi+e4HqYU86qDahyIvGk4KPOjfmmVWM1TzHy5on9TOye76KnMGFV7maUMSY077eh2e+36ZMZgCzzwbH0ZW2HGqWUFoB6AEHeuWbhrvbhMibyGJXV5JsFt65LFPwzKWh9h6XKYa51x0CWQeTAVoNlOebiZsWFlSqklHh111MMJZFS5thavxAAASKDE86or9SLUanGoegso3AtoNM8QRVNPd8SPdjGlUEAfgWozin3m9G+Cjah+/kxQ3aNjYC1pL9JOUEeZ6wLBtN22jMVCUklDKz6Tqnmud1nhAmDCzVV9FouhCQLK9gSwLCJwS8kCGonr7TlCoHxJYnENtaT7MGWnCwJgOx0fPw7WG+sCSnIoKI/fSf0bA4prXy69Uj34ewBKn/wagS038EniYZhDl+oFgnHhADoUtPFgRE6Rf+FbsXabyQaJjEsCTr9tTDtu53ZT4grw3R97AJktOQBqdvhCI0kHZEuIq0ElBwkgo1LbgI4xk++IZdQNUlBNM4UQyRMj/dvyjJdIX+/N4eZD8UqIslRIezuVSPaLhtzzzR1OLX2A70aw8YgmBTJ6kaxXWz3IVXEbeIOdeOhPaGCVCkvmXoEgPGhVIhtp52lpJx3rbczDUWZ2+wMDy26aV1qhjXuH+e1ujdRYgK3jGK/LbBdFWZAwq2JD63yF82vlqWYJOEs8C/95ZNr/mzfvYKZTeMhLdeIL6BoKu3noOY0vT+8aWPpZ5qBT5ffvMx23elA9t5x8y+8388CSD8UwjytsaUVf5NFCJEftbNU5WWTfK6QO6G+dVF3kj5Cpo22/Zqdb8H8/tN3tJPemQNUOosO472XDu3mCZN0Lna9Bh4J55JreGr7LVH5feZSNSZuObYK3P3nmSHILmMtjYVRa16wnvMdIGP2FS4Fe5OdBbyYLP0PwbyEjm0sf4txA1AtGrOIqVK6WepGPThtP6D/V/3jVDf/B5EjCQ/tAkleQx41ILYRvXeAvoaeqCW0AvUDUC/Z2D+9v6tp59a9FndMPVW6cQZK9yTcWiBLpi0GCjCxISchjZQ1Y9C1g7hQpG7d/YfD92MnV6zy2n0Pl/0FKhijtc+9oooeZMCsL7Nj0WYBu25+nr1QYOkHk2ticDuhiK0hb5qj5G93rbCI7UEawpW3RyCUX6HmAc8keee9V8l9Yo4qHjg3LDBOMeaJG7mRMKQ6VH1rBOtnL3+jWJON55m36WuEpG03fWEX9shAB62B0G0iC0sgPA+24x9dd5U73YKwoJ+wGWMIaYI1SyHo7ykA1WaUoTuglX7t5gBtImZxLD/j/eFRD1Oljy0pLKkLggv70oYsyZx3aeijU15ec26KEZnMo2a/jCbobrxRzMtx4AExImnHqgI35YkdiLLLRCpxxi7w55Tr0WO9kxIazkyLVSJOH6NyVXspiu0KK1nADh9Xh0riPOyBhtoTRBDC/Ny2l6Ex+EFN5UQynrGEjfnam3TwE8Pno</VRMSG_UNPROV><VRMSG_ENCODING>G729</VRMSG_ENCODING><VRMSG_PTIME>60</VRMSG_PTIME><T38-UDP_PTIME>20,30,40,10</T38-UDP_PTIME><iLBC_PTIME>20,30</iLBC_PTIME><G729_PTIME>20,10</G729_PTIME><G726-40_PTIME>20</G726-40_PTIME><G726-32_PTIME>20</G726-32_PTIME><G726-24_PTIME>20</G726-24_PTIME><G726-16_PTIME>20</G726-16_PTIME><PCMU_PTIME>20,30,10</PCMU_PTIME><PCMA_PTIME>20,30,10</PCMA_PTIME><FaxPassThrough>Auto</FaxPassThrough><ModemPassThrough>Auto</ModemPassThrough><T38_BitRate>144</T38_BitRate><T38_HighSpeedPacketRate>20</T38_HighSpeedPacketRate><T38_HighSpeedRedundancy>2</T38_HighSpeedRedundancy><T38_LowSpeedRedundancy>4</T38_LowSpeedRedundancy><T38_TRANSFERRED_TCF>2</T38_TRANSFERRED_TCF><T38-UDP_VAD>1</T38-UDP_VAD><T38-UDP_ENABLE>1</T38-UDP_ENABLE><iLBC_VAD>1</iLBC_VAD><G729E_PTIME>20,10</G729E_PTIME><G729E_VAD>1</G729E_VAD><G729_VAD>1</G729_VAD><G726-40_VAD>1</G726-40_VAD><G726-32_VAD>1</G726-32_VAD><G726-24_VAD>1</G726-24_VAD><G726-16_VAD>1</G726-16_VAD><PCMU_VAD>1</PCMU_VAD><PCMA_VAD>1</PCMA_VAD><G729E_PT>105</G729E_PT></COMMON_CODING_CONFIG><SIP_CONFIG><TIMER_T1>500</TIMER_T1><TIMER_T2>4000</TIMER_T2><TIMER_T4>5000</TIMER_T4><TIMER_B>10000</TIMER_B><TIMER_D>32000</TIMER_D><TIMER_F>35000</TIMER_F><TIMER_H>32000</TIMER_H><TIMER_J>32000</TIMER_J><REG_EXPIRE_TIMER>3600</REG_EXPIRE_TIMER><SIPUnregisterExpires>3600</SIPUnregisterExpires><SIPMaxCallLegs>6</SIPMaxCallLegs><REG_FAILRETRY_TIMER>30000</REG_FAILRETRY_TIMER><REFER_TIMEOUT>10000</REFER_TIMEOUT><UDP_LISTEN_PORT>5060</UDP_LISTEN_PORT><TCP_LISTEN_PORT>5060</TCP_LISTEN_PORT><RTP_PORT_START>49152</RTP_PORT_START><RTP_PORT_END>65535</RTP_PORT_END><RTPRTCPDSCPMarkEnable>1</RTPRTCPDSCPMarkEnable><SIPDSCPMarkEnable>1</SIPDSCPMarkEnable><RTP_TOS>0x2E</RTP_TOS><SIG_TOS>0x1A</SIG_TOS><SDP_CODEC_SELECTION>1</SDP_CODEC_SELECTION><SDP_HOLD0_ENABLE>1</SDP_HOLD0_ENABLE><TRUSTED_SIP_SOURCE>0</TRUSTED_SIP_SOURCE><SESSION_TIMER_SE>18000000</SESSION_TIMER_SE><SESSION_TIMER_MinSE>90000</SESSION_TIMER_MinSE><PERIODIC_NTFY_INTERVAL>0</PERIODIC_NTFY_INTERVAL><SIP_TRANS_PROTOCOL>0</SIP_TRANS_PROTOCOL><UA_HEADER_ENABLE>1</UA_HEADER_ENABLE><UA_HEADER_INFO>MOTOROLA-CPE</UA_HEADER_INFO><DEFAULT_PROXY_FQDN/><DEFAULT_PROXY_PORT>5060</DEFAULT_PROXY_PORT><DEFAULT_REG_FQDN/><DEFAULT_REG_PORT>5060</DEFAULT_REG_PORT><TLS_ENABLE>0</TLS_ENABLE><TLS_DEBUG_MODE>0</TLS_DEBUG_MODE><TLS_LISTEN_PORT/><TLS_LEVEL>0</TLS_LEVEL><TLS_CACHE_ENABLE>0</TLS_CACHE_ENABLE><PATH_ENABLE>0</PATH_ENABLE><RPORT_ENABLE>1</RPORT_ENABLE><MEDIA_SECURITY>0</MEDIA_SECURITY><NAT_METHOD>OPTIONS</NAT_METHOD><NAT_TIMER>60</NAT_TIMER><NOTIFY_RECONFIG_NAME>resync</NOTIFY_RECONFIG_NAME><NOTIFY_RESTART_NAME/><NOTIFY_REBOOT_NAME/><PROVIDER_PROVIDES_TELEPHONY>1</PROVIDER_PROVIDES_TELEPHONY><ENG_TELEPHONY_MODE>0x0003</ENG_TELEPHONY_MODE><KEEPALIVE>0</KEEPALIVE><KEEPALIVE_INTERVAL>60</KEEPALIVE_INTERVAL><RTCP_XR_NEGOTIATION>0</RTCP_XR_NEGOTIATION><ADD_SF_TIMER>6000</ADD_SF_TIMER><CHANGE_SF_TIMER>6000</CHANGE_SF_TIMER><TOL_JITTER>51</TOL_JITTER><MAX_LATENCY>91</MAX_LATENCY><SERVICE_FLOWS_ENABLE>0</SERVICE_FLOWS_ENABLE><ENABLE_KNOWNSIP_PROVIDER>1</ENABLE_KNOWNSIP_PROVIDER><KNOWNSIP_PROVIDER>voip.menawimax.net:5060</KNOWNSIP_PROVIDER><PHS_ENABLE>0</PHS_ENABLE><HARQ_ENABLE>1</HARQ_ENABLE><FLOW_TYPE>ertPS</FLOW_TYPE><FLOW_USAGE>OneFlowAllCalls</FLOW_USAGE><QOSFLOW_RETRY_METHOD>486BusyTone</QOSFLOW_RETRY_METHOD><STUNServerPort>3478</STUNServerPort><STUNMaximumKeepAlivePeriod>300</STUNMaximumKeepAlivePeriod><STUNMinimumKeepAlivePeriod>30</STUNMinimumKeepAlivePeriod><UserAgentPort2>5060</UserAgentPort2><UserAgentTransport2>TCP</UserAgentTransport2><UserAgentTransport2Enable>1</UserAgentTransport2Enable><AutomaticCallBackMethod>INVITE-retry</AutomaticCallBackMethod><SIPSubscribeEnable>1</SIPSubscribeEnable><ICEEnable>0</ICEEnable><PTIME_IN_OFFER>1</PTIME_IN_OFFER><PHONE_STACK_DEBUG>0</PHONE_STACK_DEBUG><PHONE_DEBUG_LEVEL>0</PHONE_DEBUG_LEVEL><WAN_MAC>~removed~</WAN_MAC></SIP_CONFIG><VOICE_SYSLOG><GEN_SYS_LOG>2</GEN_SYS_LOG><STACK_LOG>4</STACK_LOG><CALL_CONTROL_LOG>4</CALL_CONTROL_LOG><REG_LOG>4</REG_LOG><DSP_LOG>4</DSP_LOG><TELE_LOG>4</TELE_LOG><DIALPLAN_LOG>4</DIALPLAN_LOG><RESTART_LOG>4</RESTART_LOG></VOICE_SYSLOG></VOICE_XML><EQM_XML><ENABLE_KNOWNSIP_PROVIDER>1</ENABLE_KNOWNSIP_PROVIDER><KNOWNSIP_PROVIDER>voip.menawimax.net:5060</KNOWNSIP_PROVIDER><RTP_TOS>0xb8</RTP_TOS><RTP_TOS_ENABLE>0xb8</RTP_TOS_ENABLE><ADD_SF_TIMER>6000</ADD_SF_TIMER><CHANGE_SF_TIMER>6000</CHANGE_SF_TIMER><TOL_JITTER>51</TOL_JITTER><MAX_LATENCY>91</MAX_LATENCY><PHS_ENABLE>0</PHS_ENABLE><HARQ_ENABLE>1</HARQ_ENABLE><FLOW_TYPE>ertPS</FLOW_TYPE><FLOW_USAGE>OneFlowAllCalls</FLOW_USAGE><QOSFLOW_TYPE_FOR_FAXMODEM>ertPS</QOSFLOW_TYPE_FOR_FAXMODEM><QOSFLOW_FOR_CALLCONTROL_ENABLE>0</QOSFLOW_FOR_CALLCONTROL_ENABLE><QOSFLOW_TYPE_FOR_CALLCONTROL>nrtPS</QOSFLOW_TYPE_FOR_CALLCONTROL><QOSFLOW_RATE_FOR_CALLCONTROL>60000</QOSFLOW_RATE_FOR_CALLCONTROL><QOSFLOW_MIN_RATE_FOR_CALLCONTROL>60000</QOSFLOW_MIN_RATE_FOR_CALLCONTROL><QOSFLOW_JITTER_FOR_CALLCONTROL>100</QOSFLOW_JITTER_FOR_CALLCONTROL><QOSFLOW_LATENCY_FOR_CALLCONTROL>1000</QOSFLOW_LATENCY_FOR_CALLCONTROL><QOSFLOW_UGI_FOR_CALLCONTROL>200</QOSFLOW_UGI_FOR_CALLCONTROL><QOSFLOW_RETRY_METHOD>486BusyTone</QOSFLOW_RETRY_METHOD></EQM_XML><X_MOT_Device.Common.><X_MOT_DeviceReProvisioningInterval>21600</X_MOT_DeviceReProvisioningInterval><X_MOT_DeviceDataTelephonySameProvider>true</X_MOT_DeviceDataTelephonySameProvider><X_MOT_DeviceBootstrapVersion>37</X_MOT_DeviceBootstrapVersion><X_MOT_DeviceProvisioningVersion>35</X_MOT_DeviceProvisioningVersion><X_MOT_DeviceInitProvisioningInterval>15</X_MOT_DeviceInitProvisioningInterval><X_MOT_DeviceProvisioningURL>https://voip-prov-serv.menawimax.net</X_MOT_DeviceProvisioningURL></X_MOT_Device.Common.><memory_usage>0</memory_usage><X_MOT_VoiceService.Common.><X_MOT_TelephonyBootstrapVersion/><X_MOT_TelephonyProvisioningVersion>0</X_MOT_TelephonyProvisioningVersion><X_MOT_TelephonyInitProvisioningInterval>15</X_MOT_TelephonyInitProvisioningInterval></X_MOT_VoiceService.Common.><imageurl>http://image.ti.net:80,8080</imageurl><profileurl_2>tftp://profile.ti.net:69,21,2400</profileurl_2><imageurl_2>tftp://image.ti.net:69,21,2400</imageurl_2><imagestate>1</imagestate><path/><key_code/><interval>60</interval><intervalimg>60</intervalimg><dns1/><dns2/><sntp>pool.ntp.org</sntp><adminpwd_crypt>~removed~</adminpwd_crypt><userpwd_crypt/><userstate>0</userstate><provision_status>Provisioned</provision_status><tikeypub/><sdg_targetip>1.1.1.1</sdg_targetip><sdg_targetport>1111</sdg_targetport><sdg_pktsize>512</sdg_pktsize><X_MOT_Device.Certificate.><X_MOT_ServiceProviderCertificateURL/></X_MOT_Device.Certificate.><profileurl/><chksum/></settings></provision><selector id="0"><id>lan0</id><active>1</active><lan>1</lan><description>LAN group 1</description><container_name>lan</container_name><path>static</path><modules><flan><active>1</active><lan>1</lan><settings><private><ping><state>0</state></ping><block/></private><fdb/><public/></settings></flan><qos><active>1</active><lan>1</lan><settings><trusted>0</trusted><enabled>0</enabled><qw_low>40</qw_low><qw_med>60</qw_med><qw_high>100</qw_high><qw_voice>100</qw_voice><ql_low>0</ql_low><ql_med>0</ql_med><ql_high>20</ql_high><ql_voice>15</ql_voice><qos_type>ip</qos_type><default_rule><rule_name>Default</rule_name><prot_type>ip</prot_type><sa_ip>*</sa_ip><sa_mask>*</sa_mask><sa_port_start>*</sa_port_start><sa_port_end>*</sa_port_end><da_ip>*</da_ip><da_mask>*</da_mask><da_port_start>*</da_port_start><da_port_end>*</da_port_end><protocol>*</protocol><priority>low</priority><phy_port>0</phy_port><plen_start>*</plen_start><plen_end>*</plen_end></default_rule></settings></qos><hostname><active>1</active><lan>1</lan><settings><name>mywimax</name><domain/></settings></hostname><static><active>1</active><lan>1</lan><settings><ip>192.168.15.1</ip><netmask>255.255.255.0</netmask><pptp_enable>0</pptp_enable></settings></static></modules></selector><bridge id="0"><id>lanbridge0</id><active>1</active><lan>1</lan><settings><stp>off</stp><active_lan_ports>0</active_lan_ports></settings></bridge><bfilter id="0"><id>lanfilter0</id><active>1</active><lan>1</lan><settings><activated>0</activated><hidden_rules_en>0</hidden_rules_en><max_proto>5</max_proto><protocol><proto0 type="Any">0x0000</proto0><proto1 type="IPv4">0x0800</proto1><proto2 type="IPv6">0x86DD</proto2><proto3 type="RARP">0x8035</proto3><proto4 type="IPX - Ethernet II">0x8137</proto4></protocol><bf_mng_port>0</bf_mng_port></settings></bfilter><bfilter id="1"><id>lanfilter1</id><active>1</active><lan>1</lan><settings><activated>0</activated><hidden_rules_en>0</hidden_rules_en><max_proto>5</max_proto><protocol><proto0 type="Any">0x0000</proto0><proto1 type="IPv4">0x0800</proto1><proto2 type="IPv6">0x86DD</proto2><proto3 type="RARP">0x8035</proto3><proto4 type="IPX - Ethernet II">0x8137</proto4></protocol><bf_mng_port>0</bf_mng_port></settings></bfilter><dhcps id="0"><id>landhcps0</id><active>1</active><lan>1</lan><settings><state>1</state><externalopt>0</externalopt><start>192.168.15.2</start><end>192.168.15.254</end><lease>3600</lease><inflease>31536000</inflease><subnet>255.255.255.0</subnet><pc254><ip>192.168.15.2</ip><hname>pc</hname><mac>00:ee:af:ef:cf:cb</mac><leaseend>1305607120 1</leaseend></pc254><pc1><ip>192.168.15.1</ip><mac>00:00:00:00:00:00</mac><hname>router</hname></pc1></settings></dhcps><dhcps id="1"><id>landhcps1</id><active>1</active><lan>1</lan><settings><state>0</state><externalopt>0</externalopt><start>192.168.15.2</start><end>192.168.15.254</end><lease>3600</lease><inflease>604800</inflease><subnet>255.255.255.0</subnet></settings></dhcps><dhcpfwd id="0"><id>landhcpfwd0</id><active>1</active><lan>1</lan><settings><state>0</state><ip>20.0.0.3</ip></settings></dhcpfwd><dhcpfwd id="1"><id>landhcpfwd1</id><active>1</active><lan>1</lan><settings><state>0</state><ip>20.0.0.3</ip></settings></dhcpfwd><route><id>route</id><active>1</active><lan>0</lan><settings><entry id="0" private="1"><connection>lan0</connection><destination>239.0.0.0</destination><netmask>255.0.0.0</netmask><metric>1</metric></entry></settings></route><resolver><id>resolver</id><active>1</active><lan>0</lan><settings><nameserver1>172.18.0.11</nameserver1><nameserver2>172.18.128.18</nameserver2><nameserver3/><nameserver_prov1/><nameserver_prov2/><gw>188.116.232.1</gw></settings></resolver><filter><id>filter</id><active>1</active><lan>0</lan><settings><proxy>0</proxy><cookies>0</cookies><java>0</java><activex>0</activex><popups>0</popups><url_filter_enable>1</url_filter_enable><url_filter_keywords/></settings></filter><upnp><id>upnp</id><active>1</active><lan>0</lan><settings><state>1</state><connection>connection0</connection><lan>lan0</lan></settings></upnp><igmpproxy><id>igmpproxy</id><active>1</active><lan>0</lan><settings><state>0</state><connection><lan0><wancount>0</wancount><port>br0</port><state>2</state></lan0><lan1><wancount>0</wancount></lan1><lan2><wancount>0</wancount></lan2><connection0><port>veth0</port><state>0</state><wancount>1</wancount></connection0></connection></settings></igmpproxy><ddnsclient><id>ddnsclient</id><active>1</active><lan>0</lan><settings><connection0><dyndns token="server"><state>off</state><periodictimer unit="day">15</periodictimer><domainname type="param">~removed~</domainname><password type="option" prefix="--pass">~removed~</password><username type="option" prefix="--user">~removed~</username><updatestatus>No IP Address Change</updatestatus><errmsg>None</errmsg></dyndns><tzo token="server"><state>0</state><periodictimer unit="day">15</periodictimer><domainname type="param"/><key type="option" prefix="--key"/><email type="option" prefix="--email"/><updatestatus>No IP Address Change</updatestatus><errmsg>None</errmsg></tzo><dyns token="server"><state>0</state><periodictimer unit="day">15</periodictimer><domainname type="param"/><password type="option"/><username type="option"/><updatestatus>No IP Address Change</updatestatus><errmsg>None</errmsg></dyns><zoneedit token="server"><state>0</state><periodictimer unit="day">15</periodictimer><domainname type="param"/><password type="option"/><username type="option"/><updatestatus>No IP Address Change</updatestatus><errmsg>None</errmsg></zoneedit></connection0><connection1><dyndns token="server"><state>0</state><periodictimer unit="day">15</periodictimer><domainname type="param"/><password type="option" prefix="--pass"/><username type="option" prefix="--user"/><updatestatus>Connection has not acquired IP Address to update</updatestatus><errmsg>None</errmsg></dyndns><tzo token="server"><state>0</state><periodictimer unit="day">15</periodictimer><domainname type="param"/><key type="option" prefix="--key"/><email type="option" prefix="--email"/><updatestatus>Connection has not acquired IP Address to update</updatestatus><errmsg>None</errmsg></tzo></connection1><connection2><dyndns token="server"><state>0</state><periodictimer unit="day">15</periodictimer><domainname type="param"/><password type="option" prefix="--pass"/><username type="option" prefix="--user"/><updatestatus>Connection has not acquired IP Address to update</updatestatus><errmsg>None</errmsg></dyndns><tzo token="server"><state>0</state><periodictimer unit="day">15</periodictimer><domainname type="param"/><key type="option" prefix="--key"/><email type="option" prefix="--email"/><updatestatus>Connection has not acquired IP Address to update</updatestatus><errmsg>None</errmsg></tzo></connection2><connection3><dyndns token="server"><state>0</state><periodictimer unit="day">15</periodictimer><domainname type="param"/><password type="option" prefix="--pass"/><username type="option" prefix="--user"/><updatestatus>Connection has not acquired IP Address to update</updatestatus><errmsg>None</errmsg></dyndns><tzo token="server"><state>0</state><periodictimer unit="day">15</periodictimer><domainname type="param"/><key type="option" prefix="--key"/><email type="option" prefix="--email"/><updatestatus>Connection has not acquired IP Address to update</updatestatus><errmsg>None</errmsg></tzo></connection3><connection4><dyndns token="server"><state>0</state><periodictimer unit="day">15</periodictimer><domainname type="param"/><password type="option" prefix="--pass"/><username type="option" prefix="--user"/><updatestatus>Connection has not acquired IP Address to update</updatestatus><errmsg>None</errmsg></dyndns><tzo token="server"><state>0</state><periodictimer unit="day">15</periodictimer><domainname type="param"/><key type="option" prefix="--key"/><email type="option" prefix="--email"/><updatestatus>Connection has not acquired IP Address to update</updatestatus><errmsg>None</errmsg></tzo></connection4><connection5><dyndns token="server"><state>0</state><periodictimer unit="day">15</periodictimer><domainname type="param"/><password type="option" prefix="--pass"/><username type="option" prefix="--user"/><updatestatus>Connection has not acquired IP Address to update</updatestatus><errmsg>None</errmsg></dyndns><tzo token="server"><state>0</state><periodictimer unit="day">15</periodictimer><domainname type="param"/><key type="option" prefix="--key"/><email type="option" prefix="--email"/><updatestatus>Connection has not acquired IP Address to update</updatestatus><errmsg>None</errmsg></tzo></connection5><connection6><dyndns token="server"><state>0</state><periodictimer unit="day">15</periodictimer><domainname type="param"/><password type="option" prefix="--pass"/><username type="option" prefix="--user"/><updatestatus>Connection has not acquired IP Address to update</updatestatus><errmsg>None</errmsg></dyndns><tzo token="server"><state>0</state><periodictimer unit="day">15</periodictimer><domainname type="param"/><key type="option" prefix="--key"/><email type="option" prefix="--email"/><updatestatus>Connection has not acquired IP Address to update</updatestatus><errmsg>None</errmsg></tzo></connection6><connection7><dyndns token="server"><state>0</state><periodictimer unit="day">15</periodictimer><domainname type="param"/><password type="option" prefix="--pass"/><username type="option" prefix="--user"/><updatestatus>Connection has not acquired IP Address to update</updatestatus><errmsg>None</errmsg></dyndns><tzo token="server"><state>0</state><periodictimer unit="day">15</periodictimer><domainname type="param"/><key type="option" prefix="--key"/><email type="option" prefix="--email"/><updatestatus>Connection has not acquired IP Address to update</updatestatus><errmsg>None</errmsg></tzo></connection7></settings></ddnsclient><tca><id>tca</id><active>1</active><lan>0</lan><settings><sdg_targetip>1.1.1.1</sdg_targetip><sdg_targetport>1111</sdg_targetport><sdg_pktsize>512</sdg_pktsize></settings></tca><pr><id>pr</id><active>1</active><lan>0</lan><settings/></pr><fault_manage><id>fault_manage</id><active>1</active><lan>0</lan><settings/></fault_manage><ipkgm><id>ipkgm</id><active>1</active><lan>0</lan><settings/></ipkgm><routed><id>rip</id><active>1</active><lan>0</lan><settings><state>0</state><direction>0</direction><version>2</version><pwdreqd>1</pwdreqd><password>test</password><route1><net>0.0.0.0</net><gateway>255.255.255.0</gateway><metric>1</metric><state>0</state><use>0</use></route1><interface><lan0><port>br0</port><options>3</options></lan0><connection0><port>veth0</port><options>c1</options></connection0></interface></settings></routed><sntp><id>sntp</id><active>0</active><lan>0</lan><settings><status>1</status><prim_server>pool.ntp.org</prim_server><secn_server/><tert_server/><timeout>5</timeout><retry_count>2</retry_count><poll_interval>7</poll_interval><timezone>sn03</timezone><timezone_prov>GMT</timezone_prov><daylight>1</daylight><connection/><timezonefull>sn31</timezonefull></settings></sntp><dhcpfwd><id>dhcprelay</id><active>1</active><lan>0</lan><settings><state>0</state><ip>20.0.0.3</ip></settings></dhcpfwd><voice><id>voice</id><active>1</active><lan>0</lan><settings><state>1</state><qos_ext>0</qos_ext><us_bw>0</us_bw><qos_mss>0</qos_mss><gap_time>0</gap_time><connection>connection0</connection></settings></voice><eth id="1"><id>eth1</id><active>1</active><lan>1</lan><settings><iface>eth1</iface></settings></eth><eth id="2"><id>eth2</id><active>1</active><lan>1</lan><settings><iface>eth2</iface></settings></eth><l2tp><id>l2tp</id><active>1</active><lan>1</lan><settings>
</settings></l2tp><wmax><id>wmax</id><active>1</active><lan>0</lan><settings><iface>veth0</iface><hwaddr/><router_enabled>1</router_enabled><wmax_enable>1</wmax_enable><factory_tune><core_config><wmanIfSsConfigurationTable><index1><wmanIfSsLostDLMapInterval>600</wmanIfSsLostDLMapInterval><wmanIfSsLostULMapInterval>600</wmanIfSsLostULMapInterval><wmanIfSsContentionRangRetries>16</wmanIfSsContentionRangRetries><wmanIfSsRequestRetries>16</wmanIfSsRequestRetries><wmanIfSsRegRequestRetries>3</wmanIfSsRegRequestRetries><wmanIfSsT1Timeout>20000</wmanIfSsT1Timeout><wmanIfSsT2Timeout>1000</wmanIfSsT2Timeout><wmanIfSsT3Timeout>200</wmanIfSsT3Timeout><wmanIfSsT4Timeout>5</wmanIfSsT4Timeout><wmanIfSsT6Timeout>200</wmanIfSsT6Timeout><wmanIfSsT12Timeout>20000</wmanIfSsT12Timeout><wmanIfSsT14Timeout>200</wmanIfSsT14Timeout><wmanIfSsT18Timeout>150</wmanIfSsT18Timeout><wmanIfSsT20Timeout>1000</wmanIfSsT20Timeout><wmanIfSsT21Timeout>100</wmanIfSsT21Timeout><wmanIfSsSBCRequestRetries>5</wmanIfSsSBCRequestRetries></index1></wmanIfSsConfigurationTable><wmanIfCmnBsSsConfigurationTable><index1><wmanIfCmnInvitedRangRetries>16</wmanIfCmnInvitedRangRetries><wmanIfCmnDSxReqRetries>3</wmanIfCmnDSxReqRetries><wmanIfCmnDSxRespRetries>3</wmanIfCmnDSxRespRetries><wmanIfCmnT7Timeout>300</wmanIfCmnT7Timeout><wmanIfCmnT8Timeout>300</wmanIfCmnT8Timeout><wmanIfCmnT10Timeout>1000</wmanIfCmnT10Timeout><wmanIfCmnT22Timeout>150</wmanIfCmnT22Timeout></index1></wmanIfCmnBsSsConfigurationTable><wmanIfCmnCryptoSuiteTable><index1><index1><wmanIfCmnCryptoSuiteDataEncryptAlg>0</wmanIfCmnCryptoSuiteDataEncryptAlg><wmanIfCmnCryptoSuiteDataAuthentAlg>0</wmanIfCmnCryptoSuiteDataAuthentAlg><wmanIfCmnCryptoSuiteTekEncryptAlg>1</wmanIfCmnCryptoSuiteTekEncryptAlg></index1><index131332><wmanIfCmnCryptoSuiteDataEncryptAlg>2</wmanIfCmnCryptoSuiteDataEncryptAlg><wmanIfCmnCryptoSuiteDataAuthentAlg>1</wmanIfCmnCryptoSuiteDataAuthentAlg><wmanIfCmnCryptoSuiteTekEncryptAlg>4</wmanIfCmnCryptoSuiteTekEncryptAlg></index131332></index1></wmanIfCmnCryptoSuiteTable><wmanMssFreqConfigTable>
</wmanMssFreqConfigTable><wmanMssSpFreqTable><index1><wmanMssSpFrequency>3509500</wmanMssSpFrequency><X_MOT_WiMAXSPBandwidth>7000</X_MOT_WiMAXSPBandwidth><X_MOT_WiMAXSPSectorID>-1</X_MOT_WiMAXSPSectorID></index1><index2><wmanMssSpFrequency>3516500</wmanMssSpFrequency><X_MOT_WiMAXSPBandwidth>7000</X_MOT_WiMAXSPBandwidth><X_MOT_WiMAXSPSectorID>-1</X_MOT_WiMAXSPSectorID></index2><index3><wmanMssSpFrequency>3523500</wmanMssSpFrequency><X_MOT_WiMAXSPBandwidth>7000</X_MOT_WiMAXSPBandwidth><X_MOT_WiMAXSPSectorID>-1</X_MOT_WiMAXSPSectorID></index3><index4><wmanMssSpFrequency>3530500</wmanMssSpFrequency><X_MOT_WiMAXSPBandwidth>7000</X_MOT_WiMAXSPBandwidth><X_MOT_WiMAXSPSectorID>-1</X_MOT_WiMAXSPSectorID></index4><index5><wmanMssSpFrequency>3537500</wmanMssSpFrequency><X_MOT_WiMAXSPBandwidth>7000</X_MOT_WiMAXSPBandwidth><X_MOT_WiMAXSPSectorID>-1</X_MOT_WiMAXSPSectorID></index5><index6><wmanMssSpFrequency>3544500</wmanMssSpFrequency><X_MOT_WiMAXSPBandwidth>7000</X_MOT_WiMAXSPBandwidth><X_MOT_WiMAXSPSectorID>-1</X_MOT_WiMAXSPSectorID></index6><index7><wmanMssSpFrequency>3551500</wmanMssSpFrequency><X_MOT_WiMAXSPBandwidth>7000</X_MOT_WiMAXSPBandwidth><X_MOT_WiMAXSPSectorID>-1</X_MOT_WiMAXSPSectorID></index7><index8><wmanMssSpFrequency>3558500</wmanMssSpFrequency><X_MOT_WiMAXSPBandwidth>7000</X_MOT_WiMAXSPBandwidth><X_MOT_WiMAXSPSectorID>-1</X_MOT_WiMAXSPSectorID></index8><index9><wmanMssSpFrequency>3565500</wmanMssSpFrequency><X_MOT_WiMAXSPBandwidth>7000</X_MOT_WiMAXSPBandwidth><X_MOT_WiMAXSPSectorID>-1</X_MOT_WiMAXSPSectorID></index9><index10><wmanMssSpFrequency>3572500</wmanMssSpFrequency><X_MOT_WiMAXSPBandwidth>7000</X_MOT_WiMAXSPBandwidth><X_MOT_WiMAXSPSectorID>-1</X_MOT_WiMAXSPSectorID></index10><index11><wmanMssSpFrequency>3579500</wmanMssSpFrequency><X_MOT_WiMAXSPBandwidth>7000</X_MOT_WiMAXSPBandwidth><X_MOT_WiMAXSPSectorID>-1</X_MOT_WiMAXSPSectorID></index11><index12><wmanMssSpFrequency>3563000</wmanMssSpFrequency><X_MOT_WiMAXSPBandwidth>7000</X_MOT_WiMAXSPBandwidth><X_MOT_WiMAXSPSectorID>-1</X_MOT_WiMAXSPSectorID></index12><index13><wmanMssSpFrequency>3570000</wmanMssSpFrequency><X_MOT_WiMAXSPBandwidth>7000</X_MOT_WiMAXSPBandwidth><X_MOT_WiMAXSPSectorID>-1</X_MOT_WiMAXSPSectorID></index13><index14><wmanMssSpFrequency>3577000</wmanMssSpFrequency><X_MOT_WiMAXSPBandwidth>7000</X_MOT_WiMAXSPBandwidth><X_MOT_WiMAXSPSectorID>-1</X_MOT_WiMAXSPSectorID></index14><index15><wmanMssSpFrequency>3584000</wmanMssSpFrequency><X_MOT_WiMAXSPBandwidth>7000</X_MOT_WiMAXSPBandwidth><X_MOT_WiMAXSPSectorID>-1</X_MOT_WiMAXSPSectorID></index15><index16><wmanMssSpFrequency>3586500</wmanMssSpFrequency><X_MOT_WiMAXSPBandwidth>7000</X_MOT_WiMAXSPBandwidth><X_MOT_WiMAXSPSectorID>-1</X_MOT_WiMAXSPSectorID></index16><index17><wmanMssSpFrequency>3511000</wmanMssSpFrequency><X_MOT_WiMAXSPBandwidth>10000</X_MOT_WiMAXSPBandwidth><X_MOT_WiMAXSPSectorID>-1</X_MOT_WiMAXSPSectorID></index17><index18><wmanMssSpFrequency>3521000</wmanMssSpFrequency><X_MOT_WiMAXSPBandwidth>10000</X_MOT_WiMAXSPBandwidth><X_MOT_WiMAXSPSectorID>-1</X_MOT_WiMAXSPSectorID></index18><index19><wmanMssSpFrequency>3531000</wmanMssSpFrequency><X_MOT_WiMAXSPBandwidth>10000</X_MOT_WiMAXSPBandwidth><X_MOT_WiMAXSPSectorID>-1</X_MOT_WiMAXSPSectorID></index19><index20><wmanMssSpFrequency>3541000</wmanMssSpFrequency><X_MOT_WiMAXSPBandwidth>10000</X_MOT_WiMAXSPBandwidth><X_MOT_WiMAXSPSectorID>-1</X_MOT_WiMAXSPSectorID></index20><index21><wmanMssSpFrequency>3551000</wmanMssSpFrequency><X_MOT_WiMAXSPBandwidth>10000</X_MOT_WiMAXSPBandwidth><X_MOT_WiMAXSPSectorID>-1</X_MOT_WiMAXSPSectorID></index21><index22><wmanMssSpFrequency>3561000</wmanMssSpFrequency><X_MOT_WiMAXSPBandwidth>10000</X_MOT_WiMAXSPBandwidth><X_MOT_WiMAXSPSectorID>-1</X_MOT_WiMAXSPSectorID></index22><index23><wmanMssSpFrequency>3571000</wmanMssSpFrequency><X_MOT_WiMAXSPBandwidth>10000</X_MOT_WiMAXSPBandwidth><X_MOT_WiMAXSPSectorID>-1</X_MOT_WiMAXSPSectorID></index23><index24><wmanMssSpFrequency>3581000</wmanMssSpFrequency><X_MOT_WiMAXSPBandwidth>10000</X_MOT_WiMAXSPBandwidth><X_MOT_WiMAXSPSectorID>-1</X_MOT_WiMAXSPSectorID></index24></wmanMssSpFreqTable><wmanMssNapNspTable><index1><wmanMssNspRealm/><wmanMssNspId/><wmanMssNap>00000D</wmanMssNap></index1></wmanMssNapNspTable><WANWiMAXLinkConfig.Scan.><X_MOT_WiMAXQuickRescan>0</X_MOT_WiMAXQuickRescan><X_MOT_WiMAXQuickRescanWindow>30</X_MOT_WiMAXQuickRescanWindow><X_MOT_WiMAXDailyMaintRescanEnable>0</X_MOT_WiMAXDailyMaintRescanEnable><X_MOT_WiMAXDailyMaintRescanStartTime>1</X_MOT_WiMAXDailyMaintRescanStartTime><X_MOT_WiMAXDailyMaintRescanWindow>180</X_MOT_WiMAXDailyMaintRescanWindow><X_MOT_WiMAXRescanHysteresisCINR>3</X_MOT_WiMAXRescanHysteresisCINR><X_MOT_WiMAXFullScanBandwidthPriority>7MHzOver10MHz</X_MOT_WiMAXFullScanBandwidthPriority></WANWiMAXLinkConfig.Scan.></core_config><ss_config><eap_trace>0</eap_trace><enableWiMAXauth>1</enableWiMAXauth><validateFNECerts>1</validateFNECerts><checkCRL>0</checkCRL><ignoreTimeOfDay>0</ignoreTimeOfDay><update_config>0</update_config><data_interface>/var/tmp/supplicant_data.ctl</data_interface><ap_scan>0</ap_scan><fast_reauth>1</fast_reauth><load_dynamic>/usr/lib/wpa_supplicant/eap_ttls.so</load_dynamic><network><eap>TTLS</eap><eap_workaround>0</eap_workaround><private_key_passwd>"wimax i2 test certs"</private_key_passwd><anonymous_status>0</anonymous_status><anonymous_identity>"anonymous_identity"</anonymous_identity></network></ss_config><software_config><network><ca_path>"/var/tmp/truststore"</ca_path><ca_cert>"/var/tmp/root.crt"</ca_cert><client_cert>"/var/tmp/cpe.crt"</client_cert><private_key>"/var/tmp/key"</private_key><phase2>"auth=MSCHAPV2"</phase2></network><verifyFingerprint>1</verifyFingerprint><verifyMAC>0</verifyMAC><verifyCA>1</verifyCA><verifyProvInterval>600</verifyProvInterval><init_retry_timer>60</init_retry_timer><init_max_retry_count>2</init_max_retry_count><config_retry_timer>60</config_retry_timer><config_retry_timer_count>5</config_retry_timer_count><rssi_timer>5</rssi_timer><max_scan_expiry_count>3</max_scan_expiry_count><max_connect_expiry_count>2</max_connect_expiry_count><link_establishment_timer>30</link_establishment_timer><product_name>B2</product_name><wmax_connect>1</wmax_connect><reselect_enabled/><T1_initial_reselection/><T2_check_data_session/><MAX_Num_T2_Expiry/><T3_daily_reselection/><reselect_high_rssi/><reselect_low_rssi/><reselect_p_threshold/><saturated_cinr>22</saturated_cinr><cinr_error_per_sample>1</cinr_error_per_sample><ap_selection_method/><ttls_username_password>~removed~</ttls_username_password></software_config><eap_flag>1</eap_flag><rssi_failure_count>5</rssi_failure_count><overhead_scan_request_time>20</overhead_scan_request_time><qos_sf_establish_timer>180</qos_sf_establish_timer><skip_band_scan>0</skip_band_scan><ping_failure_limit>2</ping_failure_limit><dhcp_reliability_flag>1</dhcp_reliability_flag><ping_utility>0</ping_utility><wait_for_dhcp_tmr_exp>60</wait_for_dhcp_tmr_exp><ping_util_rsp_chk_tmr>150</ping_util_rsp_chk_tmr><number_of_times_radio_reset_is_allowed>2</number_of_times_radio_reset_is_allowed><pingrouter_poll_interval>45</pingrouter_poll_interval><pingrouter_ping_wait_interval>3</pingrouter_ping_wait_interval><pingrouter_max_attempts>3</pingrouter_max_attempts><X_MOT_DMProtocol>CLA</X_MOT_DMProtocol><X_MOT_DMServerCertificateValidationEnable>0</X_MOT_DMServerCertificateValidationEnable><X_MOT_ACSServerVariant>Standard</X_MOT_ACSServerVariant><X_MOT_IPHeartbeatEnable>1</X_MOT_IPHeartbeatEnable><pseudo>0</pseudo><X_MOT_WiMAXServerCertificateValidationEnable>true</X_MOT_WiMAXServerCertificateValidationEnable><idle_mode>0</idle_mode><idle_mode_timer>4096</idle_mode_timer><X_MOT_WiMAXNumberOfTopBSsAttemptNetworkEntry>1</X_MOT_WiMAXNumberOfTopBSsAttemptNetworkEntry><X_MOT_WiMAXUserConfiguredBSsScanEnable>1</X_MOT_WiMAXUserConfiguredBSsScanEnable><X_MOT_WiMAXLastGoodBSsScanEnable>1</X_MOT_WiMAXLastGoodBSsScanEnable><X_MOT_WiMAXPreferredBSsScanEnable>1</X_MOT_WiMAXPreferredBSsScanEnable><X_MOT_WiMAXNetworkEntryRetryAlgorithmEnable>1</X_MOT_WiMAXNetworkEntryRetryAlgorithmEnable><X_MOT_WiMAXNumberOfRetriesNetworkEntry>8</X_MOT_WiMAXNumberOfRetriesNetworkEntry><X_MOT_WiMAXNetworkEntryGuardTimer>86400</X_MOT_WiMAXNetworkEntryGuardTimer><X_MOT_WiMAXNetworkEntryRetryTimer>10</X_MOT_WiMAXNetworkEntryRetryTimer><X_MOT_WiMAXNetworkEntrySuspendNDSTimer>600</X_MOT_WiMAXNetworkEntrySuspendNDSTimer><X_MOT_WiMAXPeriodicalReScanEnable>1</X_MOT_WiMAXPeriodicalReScanEnable><antenna_diversity_mode>0</antenna_diversity_mode><X_MOT_WiMAXMIMOConfig>2</X_MOT_WiMAXMIMOConfig><X_MOT_WiMAXARQConfig>2</X_MOT_WiMAXARQConfig><X_MOT_WiMAXBasebandMiscOptionConfig>0</X_MOT_WiMAXBasebandMiscOptionConfig><X_MOT_WiMAXHARQConfig>1</X_MOT_WiMAXHARQConfig><wifta>0</wifta><wmax_reliability>1</wmax_reliability><idle_mode_defaulted>1</idle_mode_defaulted><other_tmpconfig>1</other_tmpconfig><tmr_ret_net_rx_stat>60</tmr_ret_net_rx_stat></factory_tune></settings></wmax><cneomi><id>cneomi</id><active>1</active><lan>0</lan><settings><hwaddr/><router_enabled>1</router_enabled><cfgver>6</cfgver><cfgtime>20070101150049</cfgtime></settings></cneomi><ap id="0"><id>ap</id><active>1</active><lan>1</lan><settings><wifi_mode>0</wifi_mode><iface>wlan0</iface><ap_service>1</ap_service><bgmode>2</bgmode><pairwise>2</pairwise><country_str>US</country_str><guest_network>0</guest_network><guest_broadcast>0</guest_broadcast><guest_auth>0</guest_auth><basic_rate>0</basic_rate><powerrate>0</powerrate><powercons>2</powercons><beacon>100</beacon><rts_threshold>2345</rts_threshold><preamble>0</preamble><frag_threshold>2344</frag_threshold><dtim>3</dtim><cts>0</cts><burst>0</burst><tx_antenna>2</tx_antenna><rx_antenna>2</rx_antenna><shortslot>2</shortslot><wmm>1</wmm><wmm_no_ack>1</wmm_no_ack><ssid0><ssid>RootShell</ssid><channel_g>6</channel_g><privacy_type>4</privacy_type><wep_auth_type>0</wep_auth_type><wep_key_length>64</wep_key_length><passphrase/><key1_value/><key2_value/><key3_value/><key4_value/><key_index>0</key_index><interval>3600</interval><psktype>1</psktype><radius_ip/><radius_port/><radius_secret/><pskvalue>2f2a2c3a3f</pskvalue><hidden_ssid>0</hidden_ssid><access_type>0</access_type></ssid0><ssid1><active>0</active><ssid>Motorola-voice_ssid</ssid><vlan>2</vlan><priority>7</priority><hidden_ssid>0</hidden_ssid><sec_profile_index>1</sec_profile_index><ssid_type>1</ssid_type><access_type>0</access_type><access_list/><privacy_type>0</privacy_type><wep_privacy>0</wep_privacy><wep_auth_type>0</wep_auth_type><radius_ip/><radius_secret/><radius_port>1812</radius_port><psktype>0</psktype><pskvalue/><interval>3600</interval><cipher>2</cipher><key_id>0</key_id><key_len1>0</key_len1><key_value1/><key_len2>0</key_len2><key_value2/><key_len3>0</key_len3><key_value3/><key_len4>0</key_len4><key_value4/><wpa2_pre_auth>0</wpa2_pre_auth><sa_max_dur>3600</sa_max_dur></ssid1><wone_a><preamble>0</preamble><slot_time>1</slot_time><mgmt_rates>39</mgmt_rates><erp_mode>0</erp_mode><erp_type>1</erp_type><rate_adapt_algo>1</rate_adapt_algo><erp_ti>0</erp_ti><cwmin_mode>2</cwmin_mode><usage_time>20</usage_time><brcst_rate>0</brcst_rate><mcst_rate>0</mcst_rate><tx_rate>0</tx_rate></wone_a><wone_g><preamble>2</preamble><slot_time>2</slot_time><mgmt_rates>39</mgmt_rates><erp_mode>3</erp_mode><erp_type>1</erp_type><rate_adapt_algo>1</rate_adapt_algo><erp_ti>0</erp_ti><cwmin_mode>2</cwmin_mode><usage_time>20</usage_time><brcst_rate>0</brcst_rate><mcst_rate>0</mcst_rate><tx_rate>0</tx_rate></wone_g><channel_g>0</channel_g><guest_ssid/><powerconstmp>2</powerconstmp><wmm_20090520>0</wmm_20090520><wmm_no_ack_20090520>0</wmm_no_ack_20090520><ap_bg_cwmin>15</ap_bg_cwmin><ap_bg_cwmax>1023</ap_bg_cwmax><ap_bg_aifsn>7</ap_bg_aifsn><ap_bg_txop_b>0</ap_bg_txop_b><ap_bg_txop_g>0</ap_bg_txop_g><ap_be_cwmin>15</ap_be_cwmin><ap_be_cwmax>63</ap_be_cwmax><ap_be_aifsn>3</ap_be_aifsn><ap_be_txop_b>0</ap_be_txop_b><ap_be_txop_g>0</ap_be_txop_g><ap_video_cwmin>7</ap_video_cwmin><ap_video_cwmax>15</ap_video_cwmax><ap_video_aifsn>1</ap_video_aifsn><ap_video_txop_b>6016</ap_video_txop_b><ap_video_txop_g>3008</ap_video_txop_g><ap_voice_cwmin>3</ap_voice_cwmin><ap_voice_cwmax>7</ap_voice_cwmax><ap_voice_aifsn>1</ap_voice_aifsn><ap_voice_txop_b>3264</ap_voice_txop_b><ap_voice_txop_g>1504</ap_voice_txop_g><sta_bg_cwmin>15</sta_bg_cwmin><sta_bg_cwmax>1023</sta_bg_cwmax><sta_bg_aifsn>7</sta_bg_aifsn><sta_bg_txop_b>0</sta_bg_txop_b><sta_bg_txop_g>0</sta_bg_txop_g><sta_be_cwmin>15</sta_be_cwmin><sta_be_cwmax>1023</sta_be_cwmax><sta_be_aifsn>3</sta_be_aifsn><sta_be_txop_b>0</sta_be_txop_b><sta_be_txop_g>0</sta_be_txop_g><sta_video_cwmin>7</sta_video_cwmin><sta_video_cwmax>15</sta_video_cwmax><sta_video_aifsn>2</sta_video_aifsn><sta_video_txop_b>6016</sta_video_txop_b><sta_video_txop_g>3008</sta_video_txop_g><sta_voice_cwmin>3</sta_voice_cwmin><sta_voice_cwmax>7</sta_voice_cwmax><sta_voice_aifsn>2</sta_voice_aifsn><sta_voice_txop_b>3264</sta_voice_txop_b><sta_voice_txop_g>1504</sta_voice_txop_g></settings></ap><ap id="1"><id>ap1</id><active>1</active><lan>1</lan><settings><iface>wlan1</iface><ap_service>1</ap_service><wifi_mode>0</wifi_mode><ssid0><ssid>Motorola</ssid><privacy_type>0</privacy_type><wep_auth_type>2</wep_auth_type><wep_key_length>64</wep_key_length><passphrase>motorola</passphrase><key1_value/><key2_value/><key3_value/><key4_value/><key_index>0</key_index><interval>3600</interval><psktype>1</psktype><radius_ip/><radius_port/><radius_secret/><pskvalue/><hidden_ssid>0</hidden_ssid><access_type>0</access_type></ssid0><bgmode>2</bgmode><channel_g>6</channel_g><pairwise>2</pairwise><guest_network>0</guest_network><guest_ssid/><guest_broadcast>1</guest_broadcast><basic_rate>0</basic_rate><powerrate>0</powerrate><powercons>2</powercons><beacon>100</beacon><rts_threshold>2346</rts_threshold><preamble>0</preamble><frag_threshold>2346</frag_threshold><dtim>3</dtim><cts>1</cts><burst>0</burst><tx_antenna>2</tx_antenna><rx_antenna>2</rx_antenna><shortslot>2</shortslot><wmm>1</wmm><wmm_no_ack>1</wmm_no_ack><wmm_20090520>0</wmm_20090520><wmm_no_ack_20090520>0</wmm_no_ack_20090520><ap_bg_cwmin>15</ap_bg_cwmin><ap_bg_cwmax>1023</ap_bg_cwmax><ap_bg_aifsn>7</ap_bg_aifsn><ap_bg_txop_b>0</ap_bg_txop_b><ap_bg_txop_g>0</ap_bg_txop_g><ap_be_cwmin>15</ap_be_cwmin><ap_be_cwmax>63</ap_be_cwmax><ap_be_aifsn>3</ap_be_aifsn><ap_be_txop_b>0</ap_be_txop_b><ap_be_txop_g>0</ap_be_txop_g><ap_video_cwmin>7</ap_video_cwmin><ap_video_cwmax>15</ap_video_cwmax><ap_video_aifsn>1</ap_video_aifsn><ap_video_txop_b>6016</ap_video_txop_b><ap_video_txop_g>3008</ap_video_txop_g><ap_voice_cwmin>3</ap_voice_cwmin><ap_voice_cwmax>7</ap_voice_cwmax><ap_voice_aifsn>1</ap_voice_aifsn><ap_voice_txop_b>3264</ap_voice_txop_b><ap_voice_txop_g>1504</ap_voice_txop_g><sta_bg_cwmin>15</sta_bg_cwmin><sta_bg_cwmax>1023</sta_bg_cwmax><sta_bg_aifsn>7</sta_bg_aifsn><sta_bg_txop_b>0</sta_bg_txop_b><sta_bg_txop_g>0</sta_bg_txop_g><sta_be_cwmin>15</sta_be_cwmin><sta_be_cwmax>1023</sta_be_cwmax><sta_be_aifsn>3</sta_be_aifsn><sta_be_txop_b>0</sta_be_txop_b><sta_be_txop_g>0</sta_be_txop_g><sta_video_cwmin>7</sta_video_cwmin><sta_video_cwmax>15</sta_video_cwmax><sta_video_aifsn>2</sta_video_aifsn><sta_video_txop_b>6016</sta_video_txop_b><sta_video_txop_g>3008</sta_video_txop_g><sta_voice_cwmin>3</sta_voice_cwmin><sta_voice_cwmax>7</sta_voice_cwmax><sta_voice_aifsn>2</sta_voice_aifsn><sta_voice_txop_b>3264</sta_voice_txop_b><sta_voice_txop_g>1504</sta_voice_txop_g><country_str>US</country_str><powerconstmp>2</powerconstmp></settings></ap><webui><id>webui</id><active>1</active><lan>0</lan><settings><tikey>AAABFwAAAAdzc2gtcnNhAAAAAwEAAQAAAQEApQk1vqtyoLaxugR4vsInMokgAUXqmaNnxE3FFdEhsyM6bo4y2fBbUW5EfhhvI3jINbDe0vz5N/WTQVc4TuWl4yANW57SckNNN7pGI4Xqa1ImNk3HZmcfb30FlPUk3O/mOsJwJ8UPe7Fxb1I2vvBhPu7cjP6E5ccA+nm20yX1xQVkng4PcJE1CT11ObYUANJgGaT5ogYtN481ZzTfUqTC3pNFDqvvj3uXPEXXi+V9Bam+IWNWTWTIQWkj5B1CavuZPlP3ExgTMWPq0SEQYHxnifQocigV9CRie1j2tSBBlpXPaJtIR9xSGyoTGSE8s9c/PXCmkfwifOmxsP0V6+4t7Q==</tikey><provider><logoimg_source>1</logoimg_source><refresh_rate>10</refresh_rate><top_bgcolor>#99CCFF</top_bgcolor><top_fgcolor>#333333</top_fgcolor><left_bgcolor>http://www.motorola.com</left_bgcolor><left_fgcolor/><content_bgcolor>#FFFFCC</content_bgcolor><content_fgcolor>#333333</content_fgcolor><button_bgcolor>#FFCC33</button_bgcolor><button_fgcolor>#333333</button_fgcolor><language>../html/defs/style5/images/WiMAX_CPE_MUI_String_R1.0.2_17JAN2008_v0.9_English.xml</language><contact/><ISPName>Mena Telecom</ISPName><ISPHomePage>http://www.menatelecom.com</ISPHomePage></provider><enable_customization>1</enable_customization><enable_banner>0</enable_banner><enable_2000port>1</enable_2000port></settings></webui><fdb><id>fdb</id><active>0</active><lan>0</lan><settings><service><state>1</state></service><categoryG description="Games" edit="0"><ruleG0 description="Alien vs Predator" np="3" stop="1" state="0"><protocolport1><portstart>80</portstart><portend>80</portend><portmap>80</portmap><protocol>UDP</protocol></protocolport1><protocolport2><portstart>2300</portstart><portend>2400</portend><portmap>2300</portmap><protocol>UDP</protocol></protocolport2><protocolport3><portstart>8000</portstart><portend>8900</portend><portmap>8000</portmap><protocol>UDP</protocol></protocolport3></ruleG0><ruleG1 description="Asheron's Call" np="3" stop="1" state="0"><protocolport1><portstart>9000</portstart><portend>9001</portend><portmap>9000</portmap><protocol>UDP</protocol></protocolport1><protocolport2><portstart>9004</portstart><portend>9005</portend><portmap>9004</portmap><protocol>UDP</protocol></protocolport2><protocolport3><portstart>9012</portstart><portend>9013</portend><portmap>9012</portmap><protocol>UDP</protocol></protocolport3></ruleG1><ruleG2 description="Dark Rein 2" np="1" stop="1" state="0"><protocolport1><portstart>26214</portstart><portend>26214</portend><portmap>26214</portmap><protocol>TCP,UDP</protocol></protocolport1></ruleG2><ruleG3 description="Delta Force" np="1" stop="1" state="0"><protocolport1><portstart>3999</portstart><portend>3999</portend><portmap>3999</portmap><protocol>TCP,UDP</protocol></protocolport1></ruleG3><ruleG4 description="Doom" np="1" stop="1" state="0"><protocolport1><portstart>666</portstart><portend>666</portend><portmap>666</portmap><protocol>TCP,UDP</protocol></protocolport1></ruleG4><ruleG5 description="Dune 2000" np="2" stop="1" state="0"><protocolport1><portstart>4000</portstart><portend>4000</portend><portmap>4000</portmap><protocol>TCP</protocol></protocolport1><protocolport2><portstart>1140</portstart><portend>1234</portend><portmap>1140</portmap><protocol>TCP,UDP</protocol></protocolport2></ruleG5><ruleG6 description="DirectX (7,8) Games" np="3" stop="1" state="0"><protocolport1><portstart>47624</portstart><portend>47624</portend><portmap>47624</portmap><protocol>TCP</protocol></protocolport1><protocolport2><portstart>6073</portstart><portend>6073</portend><portmap>6073</portmap><protocol>TCP</protocol></protocolport2><protocolport3><portstart>2300</portstart><portend>2400</portend><portmap>2300</portmap><protocol>TCP,UDP</protocol></protocolport3></ruleG6><ruleG7 description="EliteForce" np="4" stop="1" state="0"><protocolport1><portstart>26000</portstart><portend>26000</portend><portmap>26000</portmap><protocol>UDP</protocol></protocolport1><protocolport2><portstart>27500</portstart><portend>27500</portend><portmap>27500</portmap><protocol>UDP</protocol></protocolport2><protocolport3><portstart>27910</portstart><portend>27910</portend><portmap>27910</portmap><protocol>UDP</protocol></protocolport3><protocolport4><portstart>27960</portstart><portend>27960</portend><portmap>27960</portmap><protocol>UDP</protocol></protocolport4></ruleG7><ruleG8 description="EverQuest" np="2" stop="1" state="0"><protocolport1><portstart>7000</portstart><portend>7000</portend><portmap>7000</portmap><protocol>TCP</protocol></protocolport1><protocolport2><portstart>1024</portstart><portend>6000</portend><portmap>1024</portmap><protocol>UDP</protocol></protocolport2></ruleG8><ruleG9 description="Fighter Ace II" np="1" stop="1" state="0"><protocolport1><portstart>50000</portstart><portend>50100</portend><portmap>50000</portmap><protocol>TCP,UDP</protocol></protocolport1></ruleG9><ruleG10 description="Half Life" np="1" stop="1" state="0"><protocolport1><portstart>27015</portstart><portend>27015</portend><portmap>27015</portmap><protocol>TCP</protocol></protocolport1></ruleG10><ruleG11 description="Heretic II" np="1" stop="1" state="0"><protocolport1><portstart>28910</portstart><portend>28910</portend><portmap>28910</portmap><protocol>TCP</protocol></protocolport1></ruleG11><ruleG12 description="Hexen II" np="1" stop="1" state="0"><protocolport1><portstart>26900</portstart><portend>26905</portend><portmap>26900</portmap><protocol>UDP</protocol></protocolport1></ruleG12><ruleG13 description="Kali" np="2" stop="1" state="0"><protocolport1><portstart>6666</portstart><portend>6666</portend><portmap>6666</portmap><protocol>UDP</protocol></protocolport1><protocolport2><portstart>2213</portstart><portend>2218</portend><portmap>2213</portmap><protocol>UDP</protocol></protocolport2></ruleG13><ruleG14 description="Motorhead" np="2" stop="1" state="0"><protocolport1><portstart>16000</portstart><portend>16000</portend><portmap>16000</portmap><protocol>TCP,UDP</protocol></protocolport1><protocolport2><portstart>16010</portstart><portend>16030</portend><portmap>16010</portmap><protocol>TCP,UDP</protocol></protocolport2></ruleG14><ruleG15 description="MSN Gaming Zone" np="2" stop="1" state="0"><protocolport1><portstart>6667</portstart><portend>6667</portend><portmap>6667</portmap><protocol>TCP</protocol></protocolport1><protocolport2><portstart>28800</portstart><portend>29000</portend><portmap>28800</portmap><protocol>TCP</protocol></protocolport2></ruleG15><ruleG16 description="Myth: The Fallen Lords" np="1" stop="1" state="0"><protocolport1><portstart>3453</portstart><portend>3453</portend><portmap>3453</portmap><protocol>TCP</protocol></protocolport1></ruleG16><ruleG17 description="Need for Speed Porche" np="1" stop="1" state="0"><protocolport1><portstart>9442</portstart><portend>9442</portend><portmap>9442</portmap><protocol>UDP</protocol></protocolport1></ruleG17><ruleG18 description="Need for Speed 3" np="1" stop="1" state="0"><protocolport1><portstart>1030</portstart><portend>1030</portend><portmap>1030</portmap><protocol>UDP</protocol></protocolport1></ruleG18><ruleG19 description="Outlows" np="1" stop="1" state="0"><protocolport1><portstart>5310</portstart><portend>5310</portend><portmap>5310</portmap><protocol>TCP</protocol></protocolport1></ruleG19><ruleG20 description="Rainbow 6" np="1" stop="1" state="0"><protocolport1><portstart>2346</portstart><portend>2346</portend><portmap>2346</portmap><protocol>TCP</protocol></protocolport1></ruleG20><ruleG21 description="Rogue Spear" np="1" stop="1" state="0"><protocolport1><portstart>2346</portstart><portend>2346</portend><portmap>2346</portmap><protocol>TCP</protocol></protocolport1></ruleG21><ruleG22 description="Starcraft" np="1" stop="1" state="0"><protocolport1><portstart>6112</portstart><portend>6112</portend><portmap>6112</portmap><protocol>UDP</protocol></protocolport1></ruleG22><ruleG23 description="Tiberian Sun" np="2" stop="1" state="0"><protocolport1><portstart>4000</portstart><portend>4000</portend><portmap>4000</portmap><protocol>TCP</protocol></protocolport1><protocolport2><portstart>1140</portstart><portend>1234</portend><portmap>1140</portmap><protocol>TCP,UDP</protocol></protocolport2></ruleG23><ruleG24 description="Ultima" np="5" stop="1" state="0"><protocolport1><portstart>5001</portstart><portend>5010</portend><portmap>5001</portmap><protocol>TCP</protocol></protocolport1><protocolport2><portstart>7775</portstart><portend>7777</portend><portmap>7775</portmap><protocol>TCP</protocol></protocolport2><protocolport3><portstart>8800</portstart><portend>8900</portend><portmap>8800</portmap><protocol>TCP</protocol></protocolport3><protocolport4><portstart>9999</portstart><portend>9999</portend><portmap>9999</portmap><protocol>TCP</protocol></protocolport4><protocolport5><portstart>7875</portstart><portend>7875</portend><portmap>7875</portmap><protocol>TCP</protocol></protocolport5></ruleG24><ruleG25 description="Unreal Tournment" np="4" stop="1" state="0"><protocolport1><portstart>7777</portstart><portend>7781</portend><portmap>7777</portmap><protocol>UDP</protocol></protocolport1><protocolport2><portstart>27500</portstart><portend>27500</portend><portmap>27500</portmap><protocol>UDP</protocol></protocolport2><protocolport3><portstart>27900</portstart><portend>27900</portend><portmap>27900</portmap><protocol>UDP</protocol></protocolport3><protocolport4><portstart>8080</portstart><portend>8080</portend><portmap>8080</portmap><protocol>TCP</protocol></protocolport4></ruleG25><ruleG26 description="Quake 3 Server" np="1" stop="1" state="0"><protocolport1><portstart>27660</portstart><portend>27665</portend><portmap>27660</portmap><protocol>UDP</protocol></protocolport1></ruleG26><ruleG27 description="Quake 2 Server" np="1" stop="1" state="0"><protocolport1><portstart>27910</portstart><portend>27910</portend><portmap>27910</portmap><protocol>UDP</protocol></protocolport1></ruleG27><ruleG28 description="Unreal Server" np="1" stop="1" state="0"><protocolport1><portstart>7777</portstart><portend>7777</portend><portmap>7777</portmap><protocol>UDP</protocol></protocolport1></ruleG28><ruleG29 description="Diablo/Warcraft II Server" np="1" stop="1" state="0"><protocolport1><portstart>6112</portstart><portend>6119</portend><portmap>6112</portmap><protocol>TCP,UDP</protocol></protocolport1></ruleG29><ruleG30 description="Diablo II Server" np="2" stop="1" state="0"><protocolport1><portstart>6112</portstart><portend>6112</portend><portmap>6112</portmap><protocol>TCP</protocol></protocolport1><protocolport2><portstart>4000</portstart><portend>4000</portend><portmap>4000</portmap><protocol>TCP</protocol></protocolport2></ruleG30><ruleG31 description="Warcraft III Server" np="2" stop="1" state="0"><protocolport1><portstart>6112</portstart><portend>6112</portend><portmap>6112</portmap><protocol>TCP</protocol></protocolport1><protocolport2><portstart>6113</portstart><portend>6119</portend><portmap>6113</portmap><protocol>TCP</protocol></protocolport2></ruleG31><ruleG32 description="World of Warcraft Server" np="1" stop="1" state="0"><protocolport1><portstart>3724</portstart><portend>3724</portend><portmap>3724</portmap><protocol>TCP</protocol></protocolport1></ruleG32></categoryG><categoryV description="VPN" edit="0"><ruleV0 description="IPSEC L2TP" np="3" stop="1" state="0"><protocolport1><portstart>500</portstart><portend>500</portend><portmap>500</portmap><protocol>UDP</protocol></protocolport1><protocolport2><portstart>*</portstart><portend>*</portend><portmap>*</portmap><protocol>ESP</protocol></protocolport2><protocolport3><portstart>4500</portstart><portend>4500</portend><portmap>4500</portmap><protocol>UDP</protocol></protocolport3></ruleV0><ruleV1 description="PPTP" np="2" stop="1" state="0"><protocolport1><portstart>1723</portstart><portend>1723</portend><portmap>1723</portmap><protocol>TCP</protocol></protocolport1><protocolport2><portstart>*</portstart><portend>*</portend><portmap>*</portmap><protocol>GRE</protocol></protocolport2></ruleV1></categoryV><categoryA description="Audio/Video" edit="0"><ruleA0 description="Net2Phone" np="1" stop="1" state="0"><protocolport1><portstart>6613</portstart><portend>6613</portend><portmap>6613</portmap><protocol>UDP</protocol></protocolport1></ruleA0><ruleA1 description="Netmeeting" np="6" stop="1" state="0"><protocolport1><portstart>1024</portstart><portend>1064</portend><portmap>1024</portmap><protocol>TCP,UDP</protocol></protocolport1><protocolport2><portstart>1503</portstart><portend>1503</portend><portmap>1503</portmap><protocol>TCP</protocol></protocolport2><protocolport3><portstart>1720</portstart><portend>1720</portend><portmap>1720</portmap><protocol>TCP</protocol></protocolport3><protocolport4><portstart>1731</portstart><portend>1731</portend><portmap>1731</portmap><protocol>TCP</protocol></protocolport4><protocolport5><portstart>522</portstart><portend>522</portend><portmap>522</portmap><protocol>TCP</protocol></protocolport5><protocolport6><portstart>389</portstart><portend>389</portend><portmap>389</portmap><protocol>TCP</protocol></protocolport6></ruleA1><ruleA2 description="Quick Time 4 Server" np="2" stop="1" state="0"><protocolport1><portstart>6970</portstart><portend>6970</portend><portmap>6970</portmap><protocol>TCP</protocol></protocolport1><protocolport2><portstart>6970</portstart><portend>7000</portend><portmap>6970</portmap><protocol>UDP</protocol></protocolport2></ruleA2><ruleA3 description="MSN Messenger" np="3" stop="1" state="0"><protocolport1><portstart>1863</portstart><portend>1863</portend><portmap>1863</portmap><protocol>TCP</protocol></protocolport1><protocolport2><portstart>6891</portstart><portend>6900</portend><portmap>6891</portmap><protocol>TCP</protocol></protocolport2><protocolport3><portstart>6901</portstart><portend>6901</portend><portmap>6901</portmap><protocol>TCP</protocol></protocolport3></ruleA3><ruleA4 description="AOL Instant Messenger" np="1" stop="1" state="0"><protocolport1><portstart>5190</portstart><portend>5190</portend><portmap>5190</portmap><protocol>UDP</protocol></protocolport1></ruleA4></categoryA><categoryM description="Apps" edit="0"><ruleM0 description="VNC" np="3" stop="1" state="0"><protocolport1><portstart>5500</portstart><portend>5500</portend><portmap>5500</portmap><protocol>TCP</protocol></protocolport1><protocolport2><portstart>5800</portstart><portend>5800</portend><portmap>5800</portmap><protocol>TCP</protocol></protocolport2><protocolport3><portstart>5900</portstart><portend>5900</portend><portmap>5900</portmap><protocol>TCP</protocol></protocolport3></ruleM0><ruleM1 description="Win2k Terminal" np="1" stop="1" state="0"><protocolport1><portstart>3389</portstart><portend>3389</portend><portmap>3389</portmap><protocol>TCP,UDP</protocol></protocolport1></ruleM1><ruleM2 description="PcAnywhere" np="4" stop="1" state="0"><protocolport1><portstart>5631</portstart><portend>5631</portend><portmap>5631</portmap><protocol>TCP</protocol></protocolport1><protocolport2><portstart>65301</portstart><portend>65301</portend><portmap>65301</portmap><protocol>TCP</protocol></protocolport2><protocolport3><portstart>22</portstart><portend>22</portend><portmap>22</portmap><protocol>UDP</protocol></protocolport3><protocolport4><portstart>5632</portstart><portend>5632</portend><portmap>5632</portmap><protocol>UDP</protocol></protocolport4></ruleM2><ruleM3 description="Netbios" np="1" stop="1" state="0"><protocolport1><portstart>137</portstart><portend>139</portend><portmap>137</portmap><protocol>TCP,UDP</protocol></protocolport1></ruleM3><ruleM4 description="RemoteAnything" np="2" stop="1" state="0"><protocolport1><portstart>3996</portstart><portend>3998</portend><portmap>3996</portmap><protocol>UDP</protocol></protocolport1><protocolport2><portstart>3999</portstart><portend>4000</portend><portmap>3999</portmap><protocol>TCP</protocol></protocolport2></ruleM4><ruleM5 description="Radmin" np="1" stop="1" state="0"><protocolport1><portstart>4899</portstart><portend>4899</portend><portmap>4899</portmap><protocol>TCP</protocol></protocolport1></ruleM5><ruleM6 description="LapLink" np="1" stop="1" state="0"><protocolport1><portstart>1547</portstart><portend>1547</portend><portmap>1547</portmap><protocol>TCP</protocol></protocolport1></ruleM6><ruleM7 description="CarbonCopy" np="2" stop="1" state="0"><protocolport1><portstart>1680</portstart><portend>1680</portend><portmap>1680</portmap><protocol>TCP</protocol></protocolport1><protocolport2><portstart>1023</portstart><portend>1679</portend><portmap>1023</portmap><protocol>UDP</protocol></protocolport2></ruleM7><ruleM8 description="Gnutella" np="2" stop="1" state="0"><protocolport1><portstart>1214</portstart><portend>1214</portend><portmap>1214</portmap><protocol>TCP</protocol></protocolport1><protocolport2><portstart>6346</portstart><portend>6346</portend><portmap>6346</portmap><protocol>TCP,UDP</protocol></protocolport2></ruleM8></categoryM><categoryS description="Servers" edit="0"><ruleS0 description="Web Server" np="2" stop="1" state="0"><protocolport1><portstart>80</portstart><portend>80</portend><portmap>80</portmap><protocol>TCP</protocol></protocolport1><protocolport2><portstart>443</portstart><portend>443</portend><portmap>443</portmap><protocol>TCP</protocol></protocolport2></ruleS0><ruleS1 description="FTP Server" np="1" stop="1" state="0"><protocolport1><portstart>21</portstart><portend>21</portend><portmap>21</portmap><protocol>TCP</protocol></protocolport1></ruleS1><ruleS2 description="TELNET Server" np="1" stop="1" state="0"><protocolport1><portstart>23</portstart><portend>23</portend><portmap>23</portmap><protocol>TCP</protocol></protocolport1></ruleS2><ruleS3 description="DNS Server" np="1" stop="1" state="0"><protocolport1><portstart>53</portstart><portend>53</portend><portmap>53</portmap><protocol>UDP</protocol></protocolport1></ruleS3><ruleS4 description="LDAP Server" np="2" stop="1" state="0"><protocolport1><portstart>389</portstart><portend>389</portend><portmap>389</portmap><protocol>TCP</protocol></protocolport1><protocolport2><portstart>636</portstart><portend>636</portend><portmap>636</portmap><protocol>TCP</protocol></protocolport2></ruleS4><ruleS5 description="NNTP Server" np="1" stop="1" state="0"><protocolport1><portstart>119</portstart><portend>119</portend><portmap>119</portmap><protocol>TCP</protocol></protocolport1></ruleS5><ruleS6 description="SMTP Server" np="1" stop="1" state="0"><protocolport1><portstart>25</portstart><portend>25</portend><portmap>25</portmap><protocol>TCP</protocol></protocolport1></ruleS6><ruleS7 description="POP 2 Server" np="1" stop="1" state="0"><protocolport1><portstart>109</portstart><portend>109</portend><portmap>109</portmap><protocol>TCP</protocol></protocolport1></ruleS7><ruleS8 description="POP 3 Server" np="1" stop="1" state="0"><protocolport1><portstart>110</portstart><portend>110</portend><portmap>110</portmap><protocol>TCP</protocol></protocolport1></ruleS8><ruleS9 description="IMAP Server" np="3" stop="1" state="0"><protocolport1><portstart>143</portstart><portend>143</portend><portmap>143</portmap><protocol>TCP</protocol></protocolport1><protocolport2><portstart>585</portstart><portend>585</portend><portmap>585</portmap><protocol>TCP</protocol></protocolport2><protocolport3><portstart>993</portstart><portend>993</portend><portmap>993</portmap><protocol>TCP</protocol></protocolport3></ruleS9><ruleS10 description="IRC Server" np="3" stop="1" state="0"><protocolport1><portstart>6667</portstart><portend>6667</portend><portmap>6667</portmap><protocol>TCP</protocol></protocolport1><protocolport2><portstart>194</portstart><portend>194</portend><portmap>194</portmap><protocol>TCP</protocol></protocolport2><protocolport3><portstart>5100</portstart><portend>5100</portend><portmap>5100</portmap><protocol>TCP</protocol></protocolport3></ruleS10><ruleS11 description="Lotus Server" np="1" stop="1" state="0"><protocolport1><portstart>1352</portstart><portend>1352</portend><portmap>1352</portmap><protocol>TCP</protocol></protocolport1></ruleS11><ruleS12 description="Remotely Possible Server" np="1" stop="1" state="0"><protocolport1><portstart>799</portstart><portend>799</portend><portmap>799</portmap><protocol>TCP</protocol></protocolport1></ruleS12><ruleS13 description="News" np="1" stop="1" state="0"><protocolport1><portstart>2009</portstart><portend>2009</portend><portmap>2009</portmap><protocol>TCP</protocol></protocolport1></ruleS13><ruleS14 description="Whois" np="1" stop="1" state="0"><protocolport1><portstart>63</portstart><portend>63</portend><portmap>63</portmap><protocol>TCP,UDP</protocol></protocolport1></ruleS14><ruleS15 description="Finger" np="1" stop="1" state="0"><protocolport1><portstart>79</portstart><portend>79</portend><portmap>79</portmap><protocol>TCP,UDP</protocol></protocolport1></ruleS15></categoryS><categoryU description="User" edit="1"><ruleU0 description="example" np="1" stop="1" state="0"><protocolport1><portstart>0</portstart><portend>0</portend><portmap>0</portmap><protocol>TCP,UDP</protocol></protocolport1></ruleU0></categoryU><categoryH description="Remote Management ACL" hidden="1" edit="0"><acl><IP0>0</IP0><IP1>0</IP1><IP2>0</IP2><IP3>0</IP3><IP4>0</IP4><IP5>0</IP5><IP6>0</IP6><IP7>0</IP7><IP8>0</IP8><IP9>0</IP9><IP10>0</IP10><IP11>0</IP11><IP12>0</IP12><IP13>0</IP13><IP14>0</IP14><IP15>0</IP15></acl><remote_mgmt><wan><remote_web><description>Web</description><state>0</state><protocolport1><portstart>80</portstart><portend>80</portend><portmap>80</portmap><protocol>tcp</protocol></protocolport1></remote_web><remote_ssh><description>Secure Shell (SSH)</description><state>0</state><protocolport1><portstart>22</portstart><portend>22</portend><portmap>22</portmap><protocol>tcp</protocol></protocolport1></remote_ssh></wan><lan0><remote_web><description>Web</description><state>0</state><protocolport1><portstart>80</portstart><portend>80</portend><portmap>80</portmap><protocol>tcp</protocol></protocolport1></remote_web><remote_ssh><description>Secure Shell (SSH)</description><state>0</state><protocolport1><portstart>22</portstart><portend>22</portend><portmap>22</portmap><protocol>tcp</protocol></protocolport1></remote_ssh></lan0></remote_mgmt><acl_state>0</acl_state></categoryH><lan_isolation description="lan isolation" hidden="1" edit="0"><lanbridge0>
</lanbridge0></lan_isolation></settings></fdb><service id="0"><id>systemdump</id><active>1</active><lan>0</lan><settings><exec>no</exec><type>bin</type><func1><name>ls</name><option1>-l</option1></func1><func2><name>ps</name><option1>aux</option1></func2><func3><name>route</name><option1>-n</option1></func3><func4><name>arp</name><option1>-n</option1></func4><func5><name>iptables</name><option1>-t</option1><option2>nat</option2><option3>-L</option3><option4>-vn</option4></func5><func6><name>iptables</name><option1>-L</option1><option2>-vn</option2></func6></settings></service><service id="1"><id>cat</id><active>1</active><lan>0</lan><settings><exec>no</exec><type>bin</type><func1><name>cat</name><option1>/proc/version</option1></func1></settings></service><service id="2"><id>arp</id><active>1</active><lan>0</lan><settings><exec>no</exec><type>bin</type><func1><name>arp</name><option1>-n</option1></func1></settings></service><service id="3"><id>brctl</id><active>1</active><lan>0</lan><settings><exec>no</exec><type>bin</type><func1><name>brctl</name><option1>showmacs</option1><option2>br0</option2></func1></settings></service><service id="4"><id>ping</id><active>1</active><lan>0</lan><settings><exec>no</exec><type>bin</type><func1><name>ping</name><option1>-s</option1><option2>64</option2><option3>-c</option3><option4>3</option4><option5>192.168.15.1</option5></func1></settings></service><service id="5"><id>traceroute</id><active>1</active><lan>0</lan><settings><exec>no</exec><type>bin</type><func1><name>traceroute</name><option1>192.168.15.1</option1></func1></settings></service><service id="6"><id>version</id><active>1</active><lan>0</lan><settings><exec>no</exec><type>bin</type><func1><name>grep</name><option1>VERSION</option1><option2>/etc/versions</option2></func1></settings></service><selector id="2"><id>connection0</id><active>1</active><lan>0</lan><description>dhcp-voice</description><container_name>connection</container_name><path>dhcpc</path><modules><pptp><active>1</active><lan>0</lan><settings><enable>0</enable><debug>0</debug><username>username</username><password>test</password><server_ip>192.168.15.20</server_ip><mppc>0</mppc><mppe>0</mppe><stateless>1</stateless><mppe40>1</mppe40><mppe56>1</mppe56><mppe128>1</mppe128><auth>0</auth></settings></pptp><dhcpc><active>1</active><lan>0</lan><settings><defaultroute>1</defaultroute><pptp_enable>0</pptp_enable></settings></dhcpc><fwan><active>1</active><lan>0</lan><settings><private><nat><state>1</state></nat><spi><state>1</state></spi><dmz><state>0</state><InternalClient>0.0.0.0</InternalClient></dmz><log><state>0</state></log><psd><state>0</state></psd><mtu><state>1</state></mtu><ping><state>0</state></ping><rip><state>0</state></rip><dhcp_relay><state>0</state></dhcp_relay><remote_telnet><state>1</state><RemoteHost>0.0.0.0</RemoteHost><RemoteNetmask>255.255.255.255</RemoteNetmask></remote_telnet><remote_web><state>0</state><RemoteHost>0.0.0.0</RemoteHost><RemoteNetmask>0.0.0.0</RemoteNetmask><RedirectPort>80</RedirectPort></remote_web><remote_ssh><state>1</state><RemoteHost>0.0.0.0</RemoteHost><RemoteNetmask>255.255.255.255</RemoteNetmask></remote_ssh></private><fdb/><public/></settings></fwan></modules></selector><selector id="3"><id>encaps0</id><active>1</active><lan>0</lan><container_name>encaps</container_name><path>rfc2684</path><modules><qos><active>1</active><lan>0</lan><settings><trusted>1</trusted><enabled>1</enabled><qw_low>40</qw_low><qw_med>60</qw_med><qw_high>100</qw_high><qw_voice>100</qw_voice><ql_low>0</ql_low><ql_med>0</ql_med><ql_high>20</ql_high><ql_voice>15</ql_voice><qos_type>dhcpc</qos_type><default_rule><rule_name>Default</rule_name><prot_type>ip</prot_type><sa_ip>*</sa_ip><sa_mask>*</sa_mask><sa_port_start>*</sa_port_start><sa_port_end>*</sa_port_end><da_ip>*</da_ip><da_mask>*</da_mask><da_port_start>*</da_port_start><da_port_end>*</da_port_end><protocol>*</protocol><priority>low</priority><phy_port>0</phy_port><plen_start>*</plen_start><plen_end>*</plen_end></default_rule></settings></qos></modules></selector><selector id="4"><id>mux0</id><active>1</active><lan>0</lan><container_name>mux</container_name><path>disable</path><modules/></selector></modules><dependencies><lan0><lanfilter0/></lan0><lanbridge0><eth1/><ap/></lanbridge0><lanfilter0><lanbridge0/></lanfilter0><lanfilter1/><landhcps0><lan0/></landhcps0><landhcps1/><landhcpfwd0><lan0/></landhcpfwd0><landhcpfwd1/><ipkgm/><l2tp/><traceroute/><connection0><mux0/></connection0><encaps0><wmax/></encaps0><mux0><encaps0/></mux0></dependencies></config>

End! Read more!
